Key Takeaways
- A laser cutting dust collector should be selected as a complete airflow and filtration system, not only as a dust collection machine.
- The key selection factors are cutting table size, material type, cutting time, smoke volume, airflow, filter area, pressure drop, spark risk, and maintenance cost.
- For workshops planning a new system, a dedicated laser cutting dust collector page can help connect airflow design, filter cartridges, spark protection, pressure drop control, and maintenance planning into one selection framework.
- Filter cartridges are widely used in laser cutting dust collectors because they provide large filtration area in a compact structure and support stable particle capture.
- A well-selected dust collector should capture smoke at the source, protect filter cartridges from sparks, control pressure drop, and make maintenance predictable.
Why Laser Cutting Dust Collection Needs Careful Selection
Laser cutting may look clean from a distance, but the cutting zone can generate smoke, fine metal fume, oxide particles, hot sparks, and small slag fragments. These contaminants can rise from the cutting table, spread into the workshop, enter the ductwork, and finally load the filter cartridges inside the dust collector.
A good laser cutting dust collector has one main job: capture smoke and fine particles before they spread into the workshop.
This is why the dust collector should not be selected only by laser power or a simple airflow number. A machine cutting thin carbon steel, a high-power laser cutting thick plate, and a workshop cutting stainless steel or aluminum may create very different smoke behavior, heat load, spark risk, and filter loading.
In real operation, poor selection often shows up in several ways: visible smoke escaping from the cutting table, suction becoming weak after several days, pressure drop rising too quickly, filter cartridges clogging early, or burn marks appearing on the cartridge media.

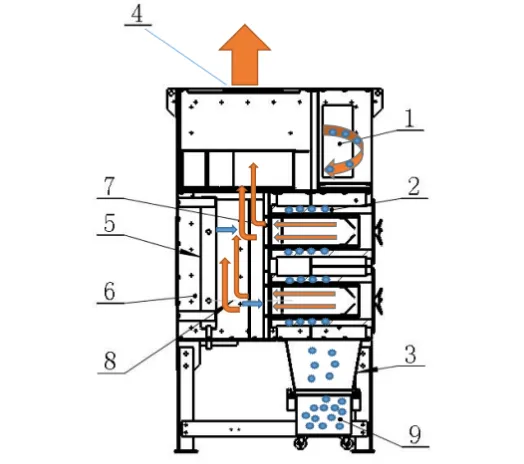

A laser cutting dust collector should therefore be viewed as a system made of five parts: source capture, ductwork, filter cartridges, pulse cleaning, and safe dust discharge.
Start from the Cutting Process
The first step is to understand the cutting process itself. A laser cutting dust collector should match real production conditions, not only the rated machine size.
The key information includes material type, plate thickness, cutting speed, cutting table size, number of cutting heads, working hours, table structure, and whether the metal surface has oil, coating, film, paint, or rust. These details affect both smoke volume and dust loading.
For example, carbon steel cutting may produce oxide dust and visible smoke. Stainless steel cutting may generate finer metal fume. Aluminum cutting may require more attention to sparks, fine particles, and dust safety review. Coated or oily materials may create sticky contamination that makes filter cartridges harder to clean.
This is why two laser machines with similar power may not need the same dust collector. One machine may need more airflow because the table is larger. Another may need more filter area because the smoke is finer or the dust load is heavier. A third may need better spark control because hot particles reach the collector more easily.
Airflow: More Is Not Always Better
Airflow is one of the most important factors in laser cutting dust collection. If airflow is too low, smoke escapes from the cutting table. If airflow is too high, the system may pull unnecessary air, increase energy consumption, disturb the cutting area, and load the filters faster.
The goal is not simply “maximum airflow.” The goal is controlled airflow at the cutting zone.
A good system should pull smoke downward or toward the capture point before it spreads into the workshop. For larger cutting tables, zoning is often important. Instead of pulling air through the entire table at once, airflow can be focused on the active cutting zone. This helps improve capture efficiency while reducing unnecessary air volume.
Airflow Problems and What They Usually Mean
| Airflow Problem | What Usually Happens | What to Check |
|---|---|---|
| Too little airflow | Smoke escapes from the cutting table or enclosure | Fan capacity, duct leakage, blocked filters, table zoning |
| Too much airflow | Higher energy use and faster filter loading | Fan setting, damper position, unnecessary open zones |
| Uneven airflow | Some table areas capture well while others leak smoke | Table structure, zoning, duct balance |
| Airflow drops over time | Suction becomes weaker during production | Filter loading, pressure drop, pulse cleaning |
| Airflow cannot recover | Filters may be blinded or the collector may be undersized | Filter media, dust load, maintenance history |
Airflow should be checked under real production conditions, not only when the collector is new and the filters are clean. A system that works well on day one may perform poorly after the filter cartridges begin to load with fine dust.
Filter Cartridges: The Core Filtration Stage
Most laser cutting dust collectors use filter cartridges because pleated cartridge media provides a large filtration area in a compact structure. This is useful for workshops where space is limited but smoke and fine dust loading are high.
However, cartridge performance depends on more than the number of cartridges. The filter media must capture fine metal fume, release dust during pulse cleaning, resist operating stress, and seal properly inside the collector.
Fine laser cutting fume can be difficult because very small particles may enter the filter media deeply. Once particles become trapped inside the media structure, pulse cleaning may not remove them effectively. The result is fast clogging, weak suction, and frequent cartridge replacement.
The filter cartridges should therefore be selected according to dust type, filtration area, media structure, pulse-cleaning response, spark risk, sealing design, and mechanical strength. A cartridge with high efficiency on paper may still fail early if the collector is overloaded, the pulse cleaning is weak, or hot particles are not controlled before the filter stage.
Pressure Drop: The Collector’s Health Signal
Pressure drop shows the resistance across the filter cartridges. When cartridges are clean, resistance is low. As dust builds on the media, resistance rises. Pulse cleaning should remove part of the dust cake and keep pressure drop within a stable operating range.
In a healthy laser cutting dust collector, pressure drop rises slowly and cleaning cycles keep it under control. If pressure drop rises quickly, the collector may be undersized, the filters may be blinding, the pulse-cleaning system may be weak, or the incoming dust load may be higher than expected.
Common Pressure Drop Problems
| Cause | Why It Happens | Practical Direction |
|---|---|---|
| Fine fume penetration | Small particles enter deep into the media | Review cartridge media and surface filtration behavior |
| Heavy dust load | Collector receives more dust than expected | Increase filter area or improve pre-separation |
| Weak pulse cleaning | Dust cake is not released properly | Check compressed air, valves, nozzles, and controller |
| Moisture or oil mist | Dust becomes sticky and hard to clean | Review material surface condition and air quality |
| Undersized collector | Air-to-media load is too high | Recheck airflow, filter area, and production duty |
| Poor maintenance timing | Filters run beyond practical service life | Define pressure-drop-based replacement limits |
Pressure drop should not be treated only as a number on the control panel. It tells the operator whether airflow, dust load, filter media, and pulse cleaning are working together.
Spark Control Comes Before Filter Protection
Laser cutting can produce sparks, hot particles, and small slag fragments. These particles should be controlled before they reach the filter cartridges.
A filter cartridge should not be the first defense against sparks.
Spark control may include proper cutting table design, drop-out space, inlet baffles, pre-separation, spark arresting, suitable duct layout, temperature monitoring, and safe dust discharge. The right design depends on metal type, cutting process, dust load, and safety requirements.
This is especially important when cutting aluminum, coated metal, oily material, or mixed metals. Some dust streams may require additional safety review. In these cases, the dust collector should be evaluated as part of a full system, not as a standalone box connected to the laser table.
The practical rule is simple: stop hot particles before they reach the filter media.
Maintenance Cost Is More Than Cartridge Price
Many buyers compare dust collectors by initial price or filter cartridge price. That is not enough. In laser cutting, the real cost includes airflow stability, electricity use, compressed-air consumption, cartridge life, downtime, cleaning labor, dust disposal, and safety checks.
A low-cost collector may become expensive if it loses suction quickly, needs frequent cartridge replacement, or cannot handle real production hours. A better-matched system may reduce long-term cost by keeping airflow stable and filter life predictable.
Maintenance Cost Factors
| Cost Factor | Why It Matters |
|---|---|
| Cartridge replacement frequency | Frequent replacement increases consumable and labor cost |
| Compressed-air use | Poor pulse cleaning wastes air and may still fail to clean |
| Fan energy | Excess airflow increases power consumption |
| Downtime | Filter changeout can interrupt production |
| Dust discharge | Poor hopper or drawer design increases cleaning labor |
| Safety inspection | Sparks, hot dust, and fine metal dust need regular checks |
| System life | Stable operation reduces emergency repair and unplanned shutdowns |
The best dust collector is not simply the cheapest unit. It is the system that delivers stable suction, predictable pressure drop, safe dust handling, and reasonable filter life.
What a Good Laser Cutting Dust Collector Should Do
A well-selected laser cutting dust collector should capture smoke close to the cutting zone, move contaminated air through ductwork with stable velocity, remove sparks and hot particles before they damage the filters, capture fine metal fume on the filter cartridges, clean the cartridges effectively through pulse cleaning, discharge collected dust safely, and maintain pressure drop within a predictable range.
If any part of this chain is weak, the whole system may become unstable. Strong airflow cannot solve poor spark protection. Good filter cartridges cannot solve duct leakage. A strong fan cannot solve filter blinding. A large collector cannot solve poor table capture.
That is why selection should consider both the dust collector and the process around it.
Omela Filtration Application Lessons
In laser cutting workshops, visible smoke escape usually points to airflow capture problems. The cause may be weak suction, blocked filters, poor table zoning, duct leakage, or an unbalanced duct layout.
Fast filter clogging usually points to heavy fine fume loading, unsuitable filter media, weak pulse cleaning, oil mist, moisture, or too much airflow per filter area.
Burn marks on filter cartridges usually suggest that sparks or hot particles reached the filter stage. In this case, replacing the cartridge alone does not solve the root problem. The upstream spark-control path should be reviewed.
For multi-machine workshops, central dust collection can work, but airflow balance becomes more important. If one branch takes too much air and another branch lacks suction, smoke capture becomes unstable even if the total fan capacity looks sufficient.
These application lessons support one engineering point: laser cutting dust collection is a system decision, not only a filter cartridge decision.
How to Choose the Right System
A practical selection process should move from the cutting source to the collector outlet.
First, confirm the cutting process: material type, thickness, cutting speed, table size, working hours, and spark risk.
Second, confirm the airflow requirement. The system must create enough capture airflow at the cutting zone and maintain it as filters load.
Third, review the filter cartridges. The media should capture fine metal fume, release dust during pulse cleaning, resist operating conditions, and seal properly.
Fourth, review spark and hot-particle control. Hot particles should be reduced before the air reaches the cartridges.
Fifth, review long-term maintenance. Filter replacement, dust discharge, pressure-drop monitoring, and compressed-air maintenance should be easy and predictable.
Information to Collect Before Selection
Before choosing a laser cutting dust collector, collect the following information:
- Laser machine power, cutting table size, and number of cutting heads
- Material type, plate thickness, cutting speed, and daily working hours
- Smoke condition, such as light smoke, heavy smoke, visible escape, or workshop haze
- Dust type, such as carbon steel, stainless steel, aluminum, galvanized sheet, coated metal, or mixed metal
- Existing airflow, duct size, fan power, pressure-drop trend, filter cartridge size, cartridge quantity, service life, spark history, workshop layout, emission target, and photos or videos of the process
This information helps determine airflow, filter area, cartridge media, spark-control method, and maintenance strategy.
Final Engineering View
Choosing a laser cutting dust collector should start from the cutting zone.
If smoke escapes at the table, the problem may be airflow capture. If suction drops after several days, the problem may be filter loading or pressure drop. If cartridges show burn marks, the problem may be spark control. If filters plug too quickly, the problem may be media selection, dust load, oil mist, moisture, or undersized filtration area.
The best system is not defined by one number. It is defined by how well the whole system works together:
capture the smoke, move the air, protect the filters, control pressure drop, discharge dust safely, and reduce maintenance cost.
For laser cutting workshops, a well-selected dust collector can improve air quality, stabilize production, protect equipment, reduce downtime, and make maintenance more predictable.
FAQ
What is a laser cutting dust collector used for?
A laser cutting dust collector is used to capture smoke, fine metal fume, oxide particles, sparks, and dust generated during laser cutting. It helps improve workshop air quality and protect equipment.
How do I choose the airflow for a laser cutting dust collector?
Airflow should be selected according to cutting table size, table structure, material type, cutting speed, number of cutting heads, duct layout, production time, and smoke capture requirement. The goal is stable capture at the cutting zone, not simply maximum airflow.
Why do laser cutting filter cartridges clog quickly?
Filter cartridges may clog quickly because of fine metal fume penetration, heavy dust load, oil mist, moisture, weak pulse cleaning, high filtration velocity, or an undersized collector.
Why does pressure drop rise in a laser cutting dust collector?
Pressure drop rises as dust accumulates on the filter cartridges. Rapid pressure-drop increase may indicate fine fume blinding, poor dust release, weak pulse cleaning, excess dust load, moisture, oil contamination, or insufficient filter area.
Are sparks dangerous for laser cutting dust collectors?
Yes. Sparks and hot particles can damage filter cartridges and may create safety risks. Spark control should be designed before the filter stage through table design, pre-separation, baffles, spark arresting, or other suitable protection.
What affects the maintenance cost of a laser cutting dust collector?
Maintenance cost depends on filter cartridge life, pressure drop, compressed-air use, fan energy, dust discharge, cleaning frequency, downtime, spark protection, and how easy the system is to inspect and service.
What information is needed to quote a laser cutting dust collector?
Provide laser power, table size, material type, thickness, cutting speed, working hours, smoke condition, spark risk, duct layout, airflow requirement, existing filter details, emission target, and photos or videos of the process.
