Polypropylene Woven Filter Fiber Cloth

Polypropylene Woven Filter Fiber Cloth

Polypropylene Woven Filter Fiber Cloth Oveview

Polypropylene woven filter cloth combines lightweight design, excellent chemical resistance and robust mechanical strength.
Because of its hydrophobic nature and strong acid/alkali resistance, it performs consistently even in harsh chemical or
wastewater filtration conditions. Flexible weave options and customizable roll sizes make PP cloth a versatile solution for
everything from filter presses to vacuum belt filters or drum filters.

  • 100% virgin polypropylene fiber to ensure high purity and consistent filtration performance
  • Excellent chemical resistance against acids, alkalis, organic solvents, and aggressive industrial liquids
  • Superior hydrophobic properties, ideal for aqueous slurries, oily liquids, and moisture-sensitive processes
  • Good abrasion resistance & long service life, even in continuous-duty filtration systems
  • Multiple weave options (plain, twill, satin) to match specific filtration requirements
  • Customizable widths, GSM, permeability, and roll lengths for diverse industrial applications
Polypropylene Woven Filter Fiber Cloth
Polypropylene Woven Filter Fiber Cloth

Polypropylene Woven Filter Cloth Key Features

01
Excellent Chemical Resistance & Corrosion Protection

Polypropylene offers outstanding resistance to acids, alkalis, and aggressive process liquids, making it ideal for chemical plants, wastewater treatment, mining slurry, plating operations, and industrial liquid–solid separation where corrosion resistance is critical.

02
Superior Hydrophobicity & Low Moisture Absorption

PP fibers naturally repel water and moisture, maintaining stable filtration behavior even in high-humidity or aqueous slurry applications. This property supports faster dewatering, improved cake discharge, and reduced risk of cloth blinding.

03
Lightweight Strength & Good Abrasion Resistance

Despite its low density, polypropylene woven cloth offers reliable tensile strength and wear resistance, performing well in continuous-duty systems such as belt filters, drum filters, filter presses, and vacuum filters.

04
Wide Weave Options for Precise Filtration Control

Available in plain, twill, and satin weaves, polypropylene cloth delivers consistent pore openings and predictable cake formation. This ensures stable filtration efficiency, repeatability, and long-term process reliability.

05
Customizable GSM, Permeability & Roll Dimensions

PP woven filter cloth can be engineered with tailored basis weight, pore size, and permeability to match equipment requirements and process characteristics. Custom roll widths and lengths ensure easy installation across OEM and aftermarket systems.

06
Cost-Effective & Long-Lasting Filtration Media

Polypropylene provides an excellent balance of affordability, chemical resistance, and durability—making it a preferred choice for large-scale industrial filtration where consistent performance and low operational cost are essential.

Polypropylene Woven Fiber Cloth Technical Data

Name Breaking Strength (N/5×20cm) Thread Count (root/10cm) Thickness (mm) Weight (g/m²) Air Permeability (L/m²·s)
PP-521 2608/2050 214.8/150.8 0.79 302.7 216.5
PP-522 2104/1633 244/173 0.41 155 73.44
PP-534 2501/1894 193.6/100.0 0.99 368.1 41.2
PP-4212 2672/1342 236.4/123.2 1.34 389.4 85.6
PP-700A 3426.6/2819.4 204/106 0.70 350 117.9
PP-700B 4648.0/2866.6 188/114 0.59 280 254.2
PP-700AB 6865.4/416.7 378/235 1.15 580 82
PP-750A (840A) 4466/2905 168/131 0.85 330 42
PP-750B (840B) 5234/3489 256/141 0.99 420 76
PP-750AB (840AB) 6718/5421 333.8/204.4 1.36 489.9 24.5
PP-840-1 5275/3948 252/146 0.90 440 45.5
PP-840-2 5928/4086 283/142 1.00 490 40.7
PP-840-3 6282/4858 311/134 1.10 520 27.2
PP-858 4418/3618 251/124 0.88 380 240.7
PP-4218 8568/5427 456/94 1.32 660 38.4
PP-4135 6797/2508 346/83 1.02 510 19.12
PP-4422 2643/1514 181/94 1.18 480 17.86
PP-1000A 5585.7/4089.2 204/102 0.85 435 9.83
PP-1000B 6636/1481 204/110 0.79 430 21.49
PP-1500-1 5628/3701 251/118 1.42 725 29.38
PP-108B 8721/4642 503/133 1.10 600 13.6
PP-108C 8367/4797 504/177 1.03 600 22.96
PP-3927 (120-16) 4598/3154 156/106 0.90 524 18

INDUSTRIAL
APPLICATIONS

Made from precision-woven 100% virgin polypropylene yarns, our woven filter cloth delivers lightweight construction, strong chemical resistance, and reliable surface-filtration performance across a wide range of industrial liquids, slurries, and wastewater streams.

More Applications
Coatings, Paints, Inks & Industrial Fluids

Coatings, Paints, Inks & Industrial Fluids

Hydrophobic polypropylene woven cloth efficiently removes pigments, gels, and coarse particles while maintaining stable flow. It is ideal for inks, paints, resins, varnishes, adhesives, and specialty process liquids where low contamination, clean finishing, and color consistency are critical.

Water & Wastewater Treatment

Water & Wastewater Treatment

Polypropylene cloth is widely used in filter presses, vacuum belt filters, and drum filters for industrial water, cooling water, RO pre-filtration, and municipal or industrial wastewater treatment. Its excellent chemical resistance and low moisture absorption support stable cake formation, efficient dewatering, and long service life.

Acids, Alkalis & Chemical Processing

Acids, Alkalis & Chemical Processing

Thanks to its outstanding resistance to acids, alkalis, and many organic solvents, polypropylene woven filter cloth is an excellent choice for pickling baths, electroplating, chemical intermediates, fertilizer production, and other aggressive process liquids. Stable pore openings provide predictable surface filtration, low product loss, and reliable solids separation under demanding operating conditions.

Engineering Support & Customization

Engineering card image

Pre-Project Technical Evaluation

  • Comprehensive process-liquid evaluation focused on PP-compatible conditions, including strong acids, alkalis, salts, and aggressive chemical streams.
  • Assessment of particle size distribution and filtration targets; polypropylene woven cloth typically supports 10–200 μm separation depending on weave (plain, twill, satin).
  • Evaluation of viscosity, temperature stability (up to ~90–100°C), and slurry characteristics to verify suitability for filter presses, vacuum belt filters, and drum filters.
  • Chemical-compatibility screening for corrosive liquids, organic solvents, pickling solutions, and wastewater streams where PP’s hydrophobic and alkali-resistant behavior offers performance advantages.
  • Identification of the best yarn type (monofilament / multifilament) based on required cake release, flow rate, and mechanical stress.
Engineering card image

Custom Engineering Solutions

  • Customizable weave structures for polypropylene cloth, including plain, twill, and satin, optimized for strength, permeability, cake release, and drainage efficiency.
  • Adjustable engineering parameters: micron rating, yarn diameter, yarn density, mesh opening, air/liquid permeability, and mechanical stability.
  • Optional design using 100% virgin PP monofilament for precision separation or PP multifilament for higher cake-holding capacity depending on application.
  • Performance-enhancing finishing options such as heat-setting, calendaring, surface smoothing, and oil/water-repellent coatings for improved durability and filtration consistency.
Engineering card image

Quality Assurance & Testing

  • Micron-rating validation using optical / digital mesh-measurement systems to guarantee uniform pore openings across the entire woven surface.
  • Flow-rate and pressure-drop testing under controlled liquid-filtration conditions to evaluate performance for industrial water, chemicals, and wastewater streams.
  • Mechanical testing of warp and weft tensile strength, confirming PP’s ability to withstand high tension, abrasion, and continuous cyclic loading.
  • Dimensional-stability verification through heat-setting and shrinkage testing to ensure minimal deformation during filtration cycles.
  • Chemical-resistance testing against acids, alkalis, and organic solvents to confirm long-term compatibility for harsh industrial environments.
LET’S WORK TOGETHER

Why Choose Omela Filtration?

Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.

We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.

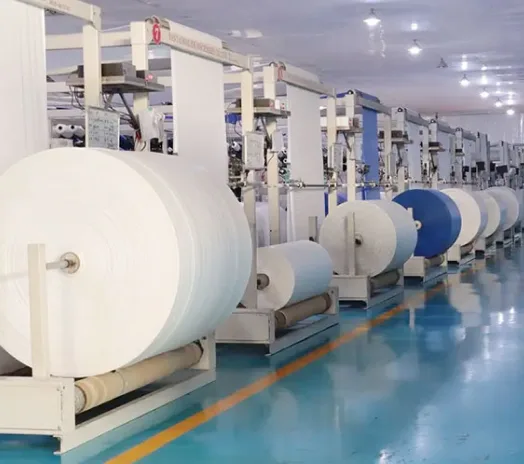

Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.

Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.

From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.

From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.

Donaldson
nederman
camfil-apc
cnbm
ACC
Metso

Frequest Asked Questions

1. What industries commonly use polypropylene woven filter cloth?
2. What micron ratings are available for PP woven filter cloth?
3. What is the maximum operating temperature for polypropylene filter cloth?
4. Should I choose monofilament or multifilament polypropylene yarn?
5. Can polypropylene filter cloth be customized for my filtration system?
6. How do you verify the quality of polypropylene woven cloth?
