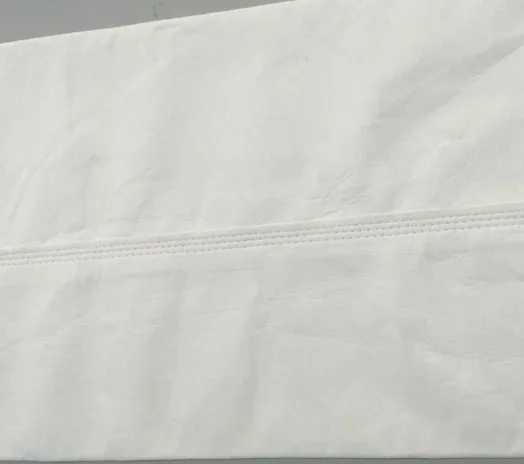

PTFE(Teflon) Filter Bags
PTFE dust filter bags—often known in the market as Teflon® filter bags—represent the highest tier of performance in industrial filtration. They are chosen for processes where temperatures, chemistry, or moisture levels exceed the limits of any other filter media. Unlike polyester, PPS, aramid, or even fiberglass, pure PTFE felt maintains its mechanical strength and surface stability even in extremely harsh environments.
PTFE fibres have an exceptionally low surface energy, which makes them naturally non-stick. In real baghouse operation this translates into cleaner bags, lower residual dust on the surface, and far more stable pressure drop during high-load periods. Plants running corrosive flue gas, high humidity, or highly variable operating windows rely on PTFE because it simply does not degrade the way other materials do.
Pure PTFE felt maintains a smooth, low-energy fibre surface that resists dust adhesion. This allows the dust cake to form evenly and release cleanly during pulsing, resulting in consistent emissions and predictable pressure drop even when gas chemistry fluctuates.
Where aramid or PPS would begin to weaken, PTFE stays in its comfort zone. In processes running between 200 and 240 °C—especially those with moisture spikes—PTFE provides unmatched thermal stability and maintains its mechanical strength far longer than other industrial felts.
PTFE is the only mainstream filter media that is effectively immune to acids, alkalis, solvents, and corrosive gas components. This resistance makes it ideal for waste incineration, chemical reactors, fertilizer production, and carbon black plants where flue gas chemistry can change from hour to hour.
Because PTFE fibres do not bind dust, the residual layer left after pulsing is extremely thin. This reduces fan load, improves airflow uniformity, and helps operators maintain stable production rates, even with high dust loading or variable humidity.
In real-world plants, PTFE bags often run for multiple years, even in gas streams that quickly destroy other filter materials. Reduced change-outs mean less downtime, lower labour intensity around the baghouse, and more predictable performance planning.
Each PTFE bag we manufacture is matched to the cage design, air-to-cloth ratio, chemical exposure profile, and cleaning system of the actual baghouse. Every production batch is checked for weight, permeability, membrane integrity, and seam strength—ensuring what arrives on site is tuned for your process, not simply “a PTFE bag.”
| ITEM | OM–PTFE240N | OM–PTFE240M | OM–PTFE240H | OM–PTFE240E | OM–PTFE240X |
|---|---|---|---|---|---|
| Working temperature (°C) | 240 | 240 | 240 | 240 | 240 |
| Peak temperature (°C) | 260 | 260 | 260 | 260 | 260 |
| Emission (mg) | / | / | / | / | 10 |
| Weight (g/m²) | 750±5% | 750±5% | 800±5% | 800±5% | 800±5% |
| Thickness (mm) | 1.5±10% | 1.0±10% | 1.6±10% | 1.2±10% | 1.6±10% |
| Air permeability (m³/m²/min) | 12±20% | 2–5 | 10±20% | 2–5 | 8±20% |
| Tensile strength / warp | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 |
| Tensile strength / weft | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 |
| Tensile elongation / warp | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Tensile elongation / weft | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
| 24–hour heat shrink / warp | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 |
| 24–hour heat shrink / weft | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Post–processing | Heat Setting / PTFE Membrane | ||||
Pure PTFE filter bags handle continuous service close to 240 °C with peaks around 260 °C, while the fluoropolymer fibre structure resists acid dew point, strong alkalis and aggressive solvent vapours in harsh flue gas.
Optimised PTFE membrane and bag construction help keep stack emissions at or below 10 mg/Nm³, supporting the strictest environmental permits and cleaner plant operation.
From waste incineration and chemical processing to high-temperature mineral kilns, PTFE filter bags offer consistent emissions control in any application involving corrosive, high-acid or high-alkali flue gases.
Incinerators expose filter media to some of the harshest gas conditions: acidic vapours, corrosive compounds, temperature swings, and variable moisture. PTFE’s chemical inertness and stable surface performance keep emissions within strict limits year-round.
Fine powder, high temperatures, and abrasive particles demand a felt with both stability and release properties. PTFE bags maintain low pressure drop and minimise carryover, essential for product recovery and stack compliance.
Reactors, dryers, and chemical handling systems generate fumes that degrade most textiles. PTFE withstands acids, solvents, and oxidizers without losing strength, helping baghouses remain reliable between scheduled shutdowns.
Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.
We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.
Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.
Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.
From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.
From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.
With 20+ years of experience and 1000+ global clients, we deliver stable filtration performance and dependable dust-collector operation.
