High-Performance PTFE Scrim Supported Felt for Coal Fired Boilers

Q: What operating temperature can PTFE needle-punched felt withstand?

PTFE felt offers continuous temperature resistance of 250–270 °C and can handle short-term peaks of 280–300 °C , making it suitable for harsh, high-temperature flue-gas environments.

Q: In which industrial applications is PTFE felt most commonly used?

PTFE felt is widely used in: Cement kilns & clinker production Waste-to-Energy (WtE) incinerators Chemical processing & corrosive gas systems Metallurgical furnaces and smelting operations High-temperature boilers and combustion processes Any gas stream containing acids, alkalis, solvents, or aggressive particulates

Q: What makes PTFE felt different from other high-temperature filter materials?

PTFE felt provides: Exceptional chemical resistance (acids, alkalis, solvents) Superior thermal stability up to 300 °C Low friction surface for better dust release Excellent durability in corrosive and sticky-dust environments Other organic felts (PPS, aramid) cannot match this level of chemical resistance.

Q: How do I know if PTFE felt is the right media for my system?

Omela evaluates: Temperature window & thermal cycling Gas-stream chemistry (SOx, NOx, chlorides, acids, alkalis) Moisture & acid-dew-point conditions Dust loading, abrasiveness, and particle size Air-to-cloth ratio & required filtration efficiency Compatibility with cage design and cleaning system A technical evaluation ensures that the chosen felt matches your system’s demands.

Q: Does Omela offer customized PTFE felt or filter bags?

Yes. Omela provides full customization, including: Felt weight, thickness, permeability, fiber structure Optional scrim reinforcement or multi-layer composites Surface treatments such as PTFE impregnation, PTFE membrane, singed/calendared finish Custom bag construction: top/bottom designs, sewn/welded seams, reinforced stress zones Engineering support to ensure proper fit & long-term performance

Q: Can PTFE felt improve baghouse service life?

Yes. Thanks to its high chemical resistance, low friction, and thermal stability, PTFE felt offers significantly longer bag life , especially in systems with: High SOx/Cl-based corrosion Sticky or oily dust High thermal loads Aggressive gas chemistry

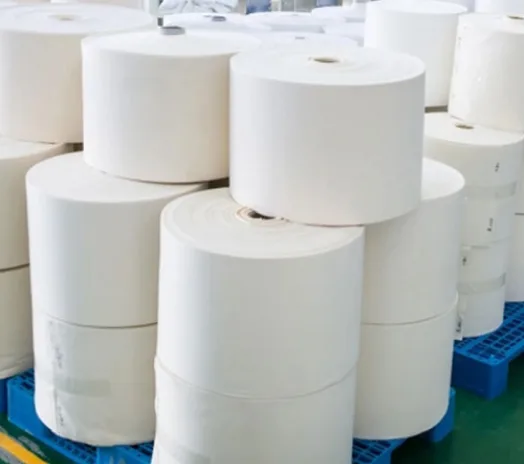

PTFE Needle-Punched Felt

PTFE Needle-Punched Felt Overview

PTFE Needle-Punched Felt is a 100% pure PTFE (Teflon®) filtration media designed for high-temperature, highly corrosive, and chemically aggressive industrial environments.
Its unique material properties deliver:

Exceptional chemical resistance to acids, alkalis, and solvents
Outstanding thermal stability, with continuous operation at 250–270 °C and peaks up to 280–300 °C
Low surface friction, enabling superior dust release
High filtration efficiency for ultra-fine particulate
Long service life even under extreme flue-gas and heavy-dust conditions

PTFE is widely used where other filter materials fail due to chemical attack, thermal degradation, or fouling from sticky or oily dust.

Key Performance Benefits of PTFE Needle-Punched Felt

Exceptional High-Temperature Resistance

Withstands continuous 250–270 °C operation and 280–300 °C peak temperatures without shrinkage, embrittlement, or structural degradation of the felt.

Outstanding Chemical Inertness

100% PTFE fibers provide exceptional resistance to acids, alkalis, solvents, and corrosive flue-gas components—ideal for cement, WtE, chemical, and metallurgical processes.

Superior Dust Release & Low Fouling

Ultra-low surface friction and hydrophobicity minimize dust adhesion, reduce caking and mudding, and improve pulse-jet cleaning efficiency even with sticky or oily particulate.

High Filtration Efficiency & Stable ΔP

Fine PTFE fiber structure captures ultra-fine particles while maintaining stable air permeability and low, predictable differential pressure over the bag’s service life.

Engineered for Extreme Industrial Conditions

Designed for high-temperature, highly corrosive, and chemically aggressive gas streams in cement kilns, waste-to-energy incinerators, power boilers, and chemical plants.

Flexible Supply & Customization Options

Available as roll goods or custom-fabricated PTFE filter bags, with optional PTFE membrane, different weights and thicknesses, tailored to specific temperature, chemistry, and A/C-ratio requirements.

PTFE Needle-Punched Felt Specifications

Technical Properties of PTFE Needle-Punched Felt
Fiber	PTFE fiber
Scrim	PTFE yarn
Weight (g/m²)	750
Thickness (mm)	1.1
Width (m)	≤2.2
Finish Treatment	PTFE impregnation, PTFE membrane
Air Permeability (L/m²·s @200Pa)	30–80
Tensile Strength (N/5×20cm)	Warp: >800
Tensile Strength (N/5×20cm)	Weft: >800
Tensile Elongation (%)	Warp: 10
Tensile Elongation (%)	Weft: 15
Shrinkage (250 °C)	Warp: <1%
Shrinkage (250 °C)	Weft: <1%
Temperature
Continuous Temperature (°C)	250
Instant Temperature (°C)	280
Chemical Properties
Anti-acid	Excellent
Anti-alkali	Excellent
Anti-abrasion	Good
Hydrolysis Stability	Excellent

Download Catalog (PDF)

INDUSTRIAL
APPLICATIONS

PTFE Needle-Punched Felt is engineered for high-temperature, highly corrosive, and chemically aggressive industrial environments. Its 100% PTFE fiber construction offers outstanding chemical inertness, thermal stability up to 250–270 °C (peaks 280–300 °C), and excellent dust-release performance.

More Applications

Cement, Lime & Mineral Processing

In cement kilns, clinker coolers, and lime / mineral processing lines, exhaust gas temperatures are very high and rich in SO₂ / SO₃, alkalis, and abrasive dust.

Waste-to-Energy (WtE) & High-Temperature Combustion

Waste-to-energy and incineration systems feature rapid temperature fluctuations, condensate risk, and corrosive SOx / HCl / HF components.

Chemical, Petrochemical & Corrosive Process Gas

In chemical and petrochemical plants, metallurgical furnaces, and power-plant boilers treating aggressive flue gas, filters are exposed to acids, alkalis, organic solvents, and high-temperature particulate.

Engineering Support & Customization

Pre-Project Technical Evaluation

Operating temperature window (continuous 250–270 °C, peaks 280–300 °C)
Thermal cycling frequency and start-up/shut-down behavior
Moisture level, acid-dew-point risk, and condensate corrosion
Gas-stream chemistry (acids, alkalis, solvents, chlorides, SOₓ, NOₓ)
Dust loading, abrasiveness, and particle size distribution
Required filtration efficiency, air-to-cloth ratio, and allowable pressure drop
Compatibility with cages, tube-sheet layout, and cleaning system parameters

Custom Engineering Solutions

Selection of felt weight, thickness, fiber structure, and permeability
Optional scrim reinforcement or multi-layer composite structures
Advanced surface treatments: PTFE impregnation, PTFE membrane, singed or calendared finishes
Optimization for cement kilns, WtE incinerators, chemical plants, metallurgy, and corrosive high-temperature gas
Custom bag construction: top/bottom configurations, sewn or welded seams, reinforced stress zones
Engineering support to ensure proper fit, mechanical stability, and long-term filtration performance

Quality Assurance & Testing

Air-permeability and pressure-drop verification
Tensile-strength and elongation testing in both directions
Heat-shrinkage and dimensional-stability tests at elevated temperatures
Chemical-resistance testing for acids, alkalis, and solvents
Microscopic inspection of fiber distribution and surface uniformity
Verification of PTFE impregnation or membrane coating integrity
Abrasion-resistance evaluation for heavy-dust environments
