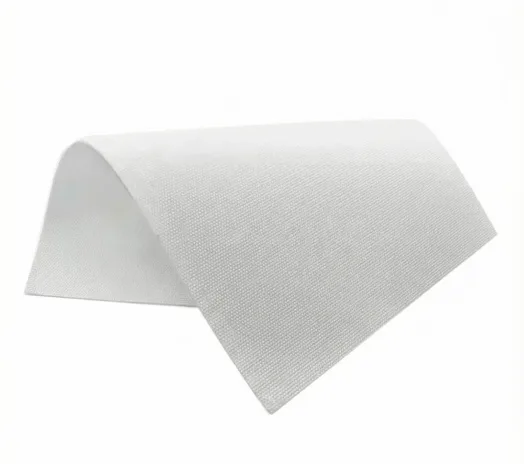

Cotton Woven Filter Fiber Cloth
Cotton Woven Filter Fiber Cloth is a 100% natural-fiber woven filtration fabric — breathable, absorbent, and soft — ideal for liquid filtration, aqueous slurry separation, food & beverage processing, chemical filtrates, water treatment, and low-temperature air/ventilation applications.
Best-use scenarios: filter presses, belt filters, water treatment, food / beverage / pharmaceutical filtration, ventilation / air-filtration, light-duty baghouses or dust collection under mild conditions.
Key selection criteria:
Omela value proposition: For processes needing natural-fiber filtration with gentle handling, reliable liquid transfer, and biodegradable, low-impact media — our Cotton Woven Filter Fiber Cloth delivers high performance, consistent manufacturing, and customizable specifications.
Cotton woven filter cloth is made from 100% natural fibers, providing excellent breathability and liquid absorbency. Its soft, flexible structure is ideal for liquid filtration, aqueous slurries, and gentle handling of sensitive products in food, beverage, and pharmaceutical processes.
With a typical filtration range of ~0.5–100 µm, cotton cloth can be engineered in plain, twill, or satin weaves and fabric weights of ~300–1600 gsm with thickness around 1.0–2.5 mm. This allows precise tuning of flow rate, retention efficiency, and filtrate clarity for different filter presses, belt filters, and cartridge designs.
Cotton woven filter fiber cloth performs best in low to medium temperature applications, with recommended continuous operation up to about 130 °C. It is particularly well suited for water treatment, chemical filtrates, and ventilation or air-filtration systems operating under mild thermal and chemical conditions.
The natural cotton surface treats delicate solids gently, reducing particle damage and helping form uniform filter cakes that are easy to wash and discharge. As a biodegradable, renewable material, cotton woven filter cloth supports low-impact, environmentally conscious filtration strategies while remaining cost-effective and easy to sew, weld, and fabricate into custom filter elements.
| Material | 100% cotton |
| Color | Raw |
| Thickness | 1.00–2.50 mm |
| Weight | 300–1600 gsm |
| Width | 600–2200 mm |
| Elongation / Shrinkage | Warp 3%, Weft 1.5% |
| Package | 50–100 meters per roll |
| Filtering Range | 0.5–100 micron |
| Weave Types | Plain, Twill, Satin |
| Recommended Maximum Temperature | 130 °C |
Engineered for water-based, mild-temperature, and product-sensitive processes, cotton woven filter fiber cloth delivers stable, gentle filtration performance in liquid–solid separation, food & beverage lines, and municipal & industrial water treatment systems.
Cotton filter cloth is widely used in filter presses, belt filters, and gravity dewatering equipment for municipal and industrial wastewater. Its high absorbency and good cake-forming behavior help remove suspended solids, organics, and fine particulates while maintaining clear filtrate quality.
Ideal for natural, product-contact applications such as juice, sugar syrup, dairy, brewing, and edible oil filtration. The soft, natural-fiber surface treats delicate products gently, supports easy cake release and washing, and aligns well with plants seeking low-impact, biodegradable filtration media.
Suitable for mild chemical and pharmaceutical slurries, pigment and dye filtration, and various aqueous process streams where extreme temperature or aggressive chemistry are not present. Custom weaves and GSM ranges allow plant engineers to balance flow rate, retention efficiency, and filtrate clarity in day-to-day operations.
Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.
We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.
Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.
Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.
From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.
From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.
Backed by 20+ years of experience and 1000+ clients, Omela Filtration provides dependable solutions for both industrial liquid filtration and dust-collection systems—ensuring stable performance, efficiency, and long-term reliability.
