Pleated Filter Bag Cages Oveview

Pleated Filter Bag Cages are high-efficiency, extended-surface support structures engineered for pleated filter bags. Unlike conventional round cages, pleated cages increase the available filtration surface area by 1.5× to 3×, improving dust-loading capacity, reducing pressure drop, and extending bag life. These cages are designed for compact baghouse designs, retrofit upgrades, and filtration systems requiring higher air-to-cloth ratios, lower differential pressure, or longer service intervals.

Key Performance Benefits

  • Up to 300% more filtration area than standard cylindrical cages
  • Lower energy consumption due to reduced pressure drop
  • Improved dust release, especially with pleated spunbond or PTFE-membrane bags
  • Longer bag life with reduced mechanical stress
  • Ideal for retrofits where increasing baghouse capacity is required without modifying housing size

Pleated cages provide excellent structural support, ensuring that pleated filter media maintain their shape under airflow and withstand repeated pulse-jet cleaning without deformation.

Pleated Filter Bag Cages

Specifications of Pleated Filter Bag Cages

Types Round, oval, diamond, pleated.
Wire Diameter 3.0/3.2/3.5/3.8/4.0/5.0mm.
Number of Wires 8/10/12/16/20/24.
Ring Space 6 inch or 8 inch (15.24cm or 20.32cm).
Cage Diameter 4 inch to 8 inch (100mm to 200mm).
Wire Thickness 2mm to 5mm.
Material Carbon Steel, Titanium Steel, Galvanized Steel, Stainless Steel.
Connection Methods Flanges, collars, or venturis.
Finishment Epoxy, silicon, PVC vinyl coating.
Download Catalog (PDF)

INDUSTRIAL
APPLICATIONS

Engineered for high-temperature, corrosive, abrasive, and heavy-dust industrial environments, Pleated Filter Bag Cages deliver exceptional structural stability, long service life, and consistent filtration performance.

More Applications
Cement, Lime & High-Dust Baghouse Filtration

Cement, Lime & High-Dust Baghouse Filtration

Stainless steel cages are the preferred choice for cement kilns, clinker coolers, lime kilns, and preheater towers due to their ability to withstand: constant high dust loading, abrasive particles, elevated operating temperatures, continuous pulse-jet impact.

Steel Plants, Metallurgy & Foundry Exhaust Systems

Steel Plants, Metallurgy & Foundry Exhaust Systems

Ideal for steel mills and metallurgical operations where flue gas contains corrosive fumes, high-temperature particulates, and sparks. Stainless steel cages offer: excellent resistance to oxidizing and acidic gas, stable structural support under thermal cycling, minimized risk of deformation during heavy pulse cleaning.

Waste-Incineration, Power Generation & Chemical Processing

Waste-Incineration, Power Generation & Chemical Processing

Stainless steel cages maintain mechanical strength even under extreme pH, moisture, and temperature conditions. Their smooth welded finish reduces abrasion, helping improve bag performance and lower total operating cost (TOC).

Engineering Support & Customization

Engineering card image

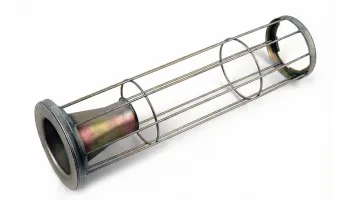

Pre-Project Technical Evaluation

  • Analyse dust chemistry, humidity, and corrosion level to confirm whether galvanized steel provides adequate protection or if stainless/titanium grades are required.
  • Review operating temperature and dew-point to assess condensation risk in cement kilns, boilers, steel mills, and grain-dust systems.
  • Evaluate dust loading, particle size, abrasiveness, and stickiness along with pulse-jet cleaning intensity.
  • Check compatibility with bag type (snap-band, sew-in, cuff), bag diameter and length, and existing tube-sheet layout.
  • Estimate expected service life and maintenance cycles to choose suitable zinc coating type (hot-dip or electro-galvanized).
Engineering card image

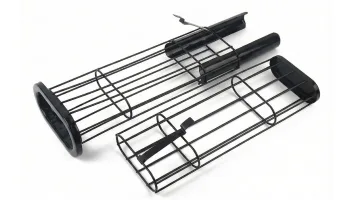

Custom Engineering Solutions

  • Base material: low-carbon steel wire with hot-dip or electro-galvanized zinc coating for economical corrosion protection.
  • Mechanical options:
    • Wire diameter: 3.0–5.0 mm
    • Vertical wires: 8 / 10 / 12 / 16 / 20 / 24
    • Ring spacing: 6″ or 8″
    • Diameter: 100–200 mm
  • Cage shapes: round, oval, diamond, pleated/star for different air-to-cloth ratios and baghouse geometries.
  • Optional components: venturis (steel or aluminium), collars, flanges, clamps, multi-section cages for tall housings.
Engineering card image

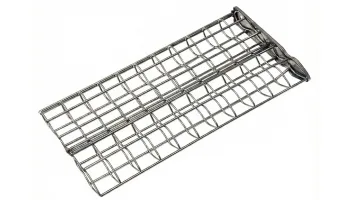

Quality Assurance & Testing

  • Zinc coating inspection: thickness testing, adhesion tests, and full-coverage verification to ensure no exposed steel.
  • Corrosion-resistance testing under humidity and light chemical exposure to ensure long-term rust prevention.
  • Weld quality & finishing: smooth, burr-free joints to prevent filter bag wear.
  • Dimensional checks: diameter tolerance, straightness, ring spacing, and wire alignment for stable airflow and low pressure drop.
  • Final visual & functional inspection to verify rigidity and ensure each batch meets performance requirements.
LET’S WORK TOGETHER

Why Choose Omela Filtration?

Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.

We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.

Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.

Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.

From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.

From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.
