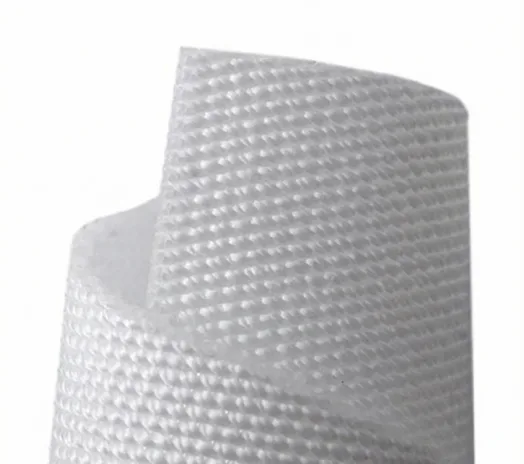

Polyester Woven Filter Fiber Cloth

Polyester Woven Filter Fiber Cloth

Polyester Woven Filter Fiber Cloth Oveview

Polyester woven filter cloth is a synthetic filtration fabric made from high-strength polyester (PET) yarns, woven into stable cloth media suitable for industrial solid–liquid separation and slurry dewatering. Unlike non-woven or needled felts, woven cloth delivers a controlled pore structure, predictable filtration performance and excellent mechanical strength — ideal for filter presses, belt filters, drum filters, vacuum filters and other industrial filtration equipment.

Key Features – Why Polyester?

  • Excellent chemical resistance, including resistance to many acids and weak alkalis,
    suitable for a variety of industrial process liquids.
  • Good mechanical strength and wear resistance, giving long service life under repetitive loading.
  • High temperature tolerance — continuous operation up to ~150 °C (302 °F) and even higher
    for peak conditions, depending on weave and finishing.
  • Hydrophobic or water-repellent (depending on finishing), helping with dewatering and
    cake discharge; suitable for slurry and wastewater dewatering.
  • Customizable — different weave patterns (plain, twill, satin), weights, finishes and
    cloth dimensions to meet varied process demands.
Polyester Woven Filter Fiber Cloth
Polyester Woven Filter Fiber Cloth

Polyester Woven Filter Cloth Key Features

01
High Mechanical Strength & Dimensional Stability

Woven polyester yarns provide excellent tensile strength and minimal stretch, ensuring stable performance in filter presses, belt filters, vacuum filters, and other solid–liquid separation equipment.

02
Accurate Filtration & Consistent Pore Size

The woven structure ensures uniform pore openings, delivering predictable filtration efficiency, repeatability, and consistent cake formation across operating cycles.

03
Chemical Resistance to Acids & Process Liquids

Polyester offers strong resistance to many acids, oxidants, and industrial processing chemicals, making it suitable for wastewater treatment, mining slurry, chemical plants, and food processing.

04
High Temperature Resistance (Up to 150°C)

Polyester woven cloth handles continuous operating temperatures up to ~150°C (302°F), maintaining stability in thermal drying systems, hot slurry filtration, and high-temperature liquid processes.

05
Excellent Cake Release & Dewatering Efficiency

Depending on finishing treatments, polyester can remain hydrophobic, allowing faster dewatering, easier cake discharge, and improved filtration cycle efficiency.

06
Cost-Effective Filtration Media

Compared with high-temperature or specialty polymers, polyester provides an excellent balance of cost and durability—suitable for large-scale filtration systems with budget constraints.

Polyester Woven Filter Fiber Cloth Technical Data

Model No Weaving Material Density (radlx/10cm)
Warp Weft Warp Weft
120-7 Twill Staple fiber Staple fiber 256.4 212
734 Twill Staple fiber Staple fiber 231.6 168
3927 Plain Staple fiber Staple fiber 152 102
208 Cylinder Twill Staple fiber Staple fiber 271 286
740 Satin Staple fiber Staple fiber 306 206.2

Property of Polyester Woven Filter Cloth

Properties Polyester Kapron Polypropylene Vinylon
Acid resistance Strong Poor Excellent Not
Alkali resistance Weak Excellent High Strong
Electrical conductivity Very poor Fairly good Excellent Medium
Elongation at break 30%–40% 18%–45% Better than polyester 12%–25%
Wear resistance Excellent Excellent Good Fairly good
Thermal endurance 170°C 130°C 90°C 100°C
Softening point 240°C 180°C 150°C 200°C
M.P. 265°C 215°C 170°C 220°C

INDUSTRIAL
APPLICATIONS

Made from precision-woven polyester yarns, our woven filter cloth delivers high mechanical strength, stable pore structure, and reliable surface-filtration performance across a wide range of industrial process liquids and slurries.

More Applications
Coatings, Paints, Inks & Industrial Fluids

Coatings, Paints, Inks & Industrial Fluids

Durable polyester woven cloth efficiently removes pigments, gels and agglomerates while maintaining uniform flow. It is ideal for inks, paints, varnishes, resins, adhesives and specialty process fluids where clean finishing, viscosity control and consistent color are critical.

Water Treatment & Utility Liquids

Water Treatment & Utility Liquids

High-strength polyester cloth is widely used in filter presses, belt filters and vacuum drum filters for industrial water, cooling water, RO pre-filtration, wastewater and general process liquids. Its dimensional stability and good cake release support efficient dewatering and long cloth lifetime.

Oils, Solvents & Chemical Processing

Oils, Solvents & Chemical Processing

Polyester woven filter cloth provides strong resistance to many acids, solvents and process oils, making it suitable for lubricants, hydraulic fluids, chemical intermediates and petrochemical streams. Stable pore openings ensure predictable surface filtration, low contamination levels and consistent product quality.

Engineering Support & Customization

Engineering card image

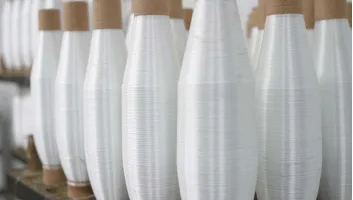

Pre-Project Technical Evaluation

  • Process-liquid assessment focused on polyester-compatible conditions, including viscosity, temperature stability up to 150 °C, and mechanical shear behavior in filter presses or belt filters.
  • Analysis of target particle size and required filtration precision; polyester woven cloth typically supports 5–150 μm separation depending on weave (plain, twill, satin).
  • Chemical compatibility evaluation for weak acids, organic solvents, oils, and neutral-to-weak-alkaline liquids, noting polyester’s sensitivity to strong alkalis.
  • Selection of appropriate weave structure—plain for stable filtration, twill for improved cake release, satin for smoother surface and lower resistance.
Engineering card image

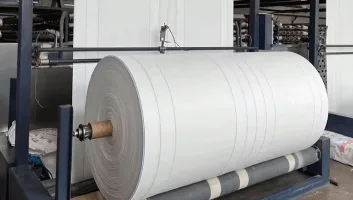

Custom Engineering Solutions

  • Customizable weave structures for polyester cloth, including plain, twill, and satin weaves to balance strength, permeability, and cake release behavior.
  • Adjustable technical parameters such as micron rating, yarn diameter, yarn count, mesh opening, and air permeability tailored to filtration needs.
  • Material configuration options using high-tenacity polyester monofilament, multifilament, or blended PET designs for enhanced durability or filtration accuracy.
  • Surface finishing enhancements including heat-setting for dimensional stability, calendaring for smoothness, hydrophobic or oleophobic treatments for improved dewatering, and anti-static finishing for powder-based processes.
Engineering card image

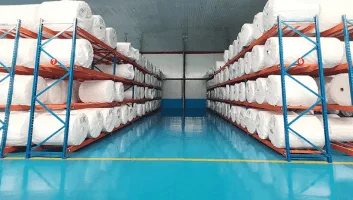

Quality Assurance & Testing

  • Micron-rating verification using optical or digital mesh measurement systems to ensure accurate and consistent pore openings across the entire cloth surface.
  • Flow-rate and pressure-drop testing under standardized liquid conditions to evaluate performance in filter presses, belt filters, and vacuum filtration processes.
  • Tensile-strength and elongation testing of both warp and weft directions, confirming polyester’s ability to withstand high tension and continuous mechanical loading.
  • Abrasion resistance and wear testing to measure durability against scraper blades, rollers, slurry friction, and repetitive mechanical stress.
LET’S WORK TOGETHER

Why Choose Omela Filtration?

Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.

We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.

Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.

Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.

From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.

From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.

Donaldson
nederman
camfil-apc
cnbm
ACC
Metso

Frequest Asked Questions

1. What are the advantages of polyester compared to other woven filter media?
2. What weave patterns are available for polyester filter cloth?
3. What micron ratings can polyester woven filter cloth achieve?
4. How is polyester filter cloth cleaned or maintained?
5. Can polyester woven filter cloth be customized for my filtration equipment?
