Stainless Steel Liquid Filter Bags

Stainless Steel Liquid Filter Bags

Stainless Steel Liquid Filter Bags Oveview

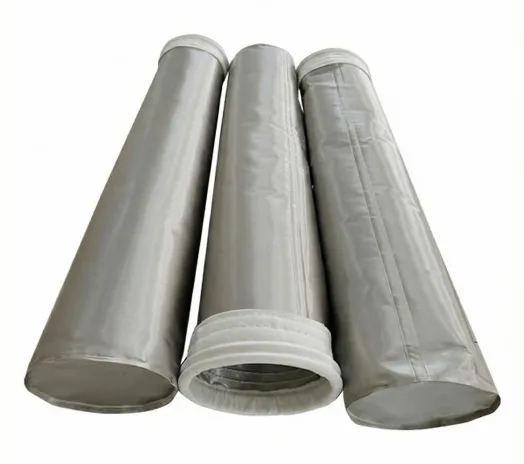

Stainless Steel Liquid Filter Bags are reusable, high-strength filtration elements constructed from precision-woven 304 or 316 stainless steel wire mesh. Their rigid metal structure provides outstanding durability, stable pore geometry, and long service life under high-temperature, high-pressure, and corrosive-chemical operating conditions. Options include single-layer or multi-layer mesh, welded or crimped seams, and stainless-steel collars for maximum sealing performance.

Best for:

  • High-temperature oils, fuels, and hydraulic fluids
  • Corrosive chemical and solvent processing
  • Viscous liquids such as resins, coatings, and adhesives
  • Electroplating and metal-finishing filtration lines
  • High-pressure or high-flow industrial systems
  • Applications requiring repeated washing and long-term re-use

Key selection criteria:

  • Temperature resistance (far above polymer-felt limits)
  • Corrosion resistance in acids, alkalis, and solvents
  • Mesh aperture accuracy (5–5000 µm)
  • Flow, viscosity, and system pressure requirements
  • Cleanability (CIP, backwash, ultrasonic cleaning)
  • Expected lifespan based on reusability cycles
Stainless Steel Liquid Filter Bags
Stainless Steel Liquid Filter Bags

Liquid Stainless Steel Filter Bags Key Performance

01
High-Temperature & Pressure Resistance

Stainless-steel mesh withstands high temperatures (300 °C+) and strong pressure without deformation, making it ideal for hot oils, fuels, and demanding industrial processes.

02
Strong Chemical & Corrosion Resistance

Made from 304/316 stainless steel, the media resists acids, alkalis, solvents, and corrosive liquids, ensuring stable performance in chemical and wastewater applications.

03
Reusable & Easy to Clean

Metal-mesh construction allows washing, backflushing, and repeated reuse, reducing operating cost and preventing fiber shedding or media degradation.

04
Consistent Flow & Precision Filtration

Available in 5–5000 µm, stainless-steel bags maintain low pressure drop and stable flow in viscous, abrasive, or high-solid liquids, ensuring predictable filtration performance.

05
Longest Service Life in Harsh Conditions

Stainless steel delivers exceptional durability, outperforming felt bags in extreme temperatures, corrosive environments, and abrasive liquid systems, resulting in fewer change-outs and lower lifecycle cost.

Stainless Steel Liquid Filter Bag Specifications

Model Bag Diameter Length Mesh Peak Flow Peak Pressure
1# 180mm 430mm 20–500 mesh 20 (T/h) 10 kg
2# 180mm 830mm 20–500 mesh 40 (T/h) 10 kg
3# 105mm 230mm 20–500 mesh 6 (T/h) 10 kg
4# 105mm 380mm 20–500 mesh 12 (T/h) 10 kg
5# 150mm 550mm 20–500 mesh 18 (T/h) 10 kg

INDUSTRIAL
APPLICATIONS

Made from high-strength 304/316 stainless-steel mesh, these reusable filter bags deliver exceptional durability in high-temperature fluids, corrosive chemicals, viscous liquids, oils, fuels, and industrial process streams—ensuring stable long-term performance in the most demanding liquid-filtration environments.

More Applications
Chemical Processing & Corrosive Liquids

Chemical Processing & Corrosive Liquids

Ideal for strong acids, alkalis, solvents, oxidizers, corrosive intermediates, and aggressive chemical-production loops. Stainless-steel mesh provides precise particle control, high thermal stability, and long service life even under repeated CIP/RIP cleaning.

High-Temperature Oils, Fuels & Industrial Fluids

High-Temperature Oils, Fuels & Industrial Fluids

Engineered for hot oils, fuels, hydraulic fluids, lubrication systems, and thermal-processing liquids. The metal-mesh structure maintains aperture accuracy at elevated temperatures and supports high-flow, high-pressure filtration cycles without deformation.

Resins, Coatings, Adhesives & Viscous Materials

Resins, Coatings, Adhesives & Viscous Materials

Stainless-steel filter bags are ideal for thick and viscous materials such as resins, paints, inks, adhesives, and polymer solutions. They prevent clogging, ensure consistent flow, and withstand repeated washing for long-term reusability in high-viscosity systems.

Engineering Support & Customization

Engineering card image

Pre-Project Technical Evaluation

  • Liquid temperature profile & high-temperature cycle behavior (up to 400–450 °C depending on fluid & grade)
  • Chemical exposure analysis: strong acids, alkalis, solvents, fuels, corrosive intermediates
  • Contaminant characteristics: particle size, hardness, viscosity, deformability
  • Required mesh aperture, dirt-holding capacity & system flow/pressure conditions
  • Compatibility with housings, baskets & sealing systems (stainless steel / PTFE / viton / metal rings)
  • Assessment of cleanability requirements for washing, ultrasonic cleaning, backflushing, or CIP systems
  • Service-life expectations under abrasion, corrosion, and repeated re-use cycles
Engineering card image

Custom Engineering Solutions

  • Custom selection of stainless-steel mesh type, wire diameter & open-area percentage
  • Material options: 304, 316, 316L, or specialty alloys for corrosive or high-temperature liquids
  • Optional multilayer mesh construction for higher precision or structural rigidity
  • Surface-finish customization: annealing, polishing, electrolytic treatment for smoother flow & reduced fouling
  • Media matching for challenging liquids: oils, fuels, alkalis, acids, solvents, resins, adhesives
  • Multiple ring options: stainless steel, steel, galvanized steel, molded plastic, or solid PTFE
  • Seam engineering: TIG welded seams, spot-welded joints, or metal-reinforced stitching
  • Engineering support to ensure dimensional accuracy, stability under pressure, and long-term reusability
Engineering card image

Quality Assurance & Testing

  • Mesh-aperture accuracy & flow-rate performance testing
  • Tensile-strength & wire-fatigue resistance testing under repeated use
  • Dimensional stability & thermal-deformation analysis for high-temperature applications
  • Corrosion-resistance evaluation for acids, alkalis, fuels, solvents & salt-rich environments
  • Cleanability validation: ultrasonic washing, CIP compatibility, and reusable-cycle endurance testing
  • Surface-finish & wire-distribution inspection for uniformity and particle-retention stability
  • Verification of sealing-ring integrity: stainless / steel / galvanized / PTFE / molded plastic
  • Abrasion-resistance testing for high-viscosity or particulate-rich liquids
LET’S WORK TOGETHER

Why Choose Omela Filtration?

Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.

We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.

Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.

Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.

From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.

From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.

Donaldson
nederman
camfil-apc
cnbm
ACC
Metso

Frequest Asked Questions

1. How do I determine the correct stainless-steel mesh aperture for my application?
2. Can stainless steel filter bags withstand high-temperature liquid filtration?
3. Are stainless steel filter bags suitable for corrosive liquids?
4. Can stainless steel liquid filter bags be washed and reused?
5. What sealing-ring options are available for stainless steel filter bags?
6. Can Omela customize stainless steel filter bags for special industrial requirements?
