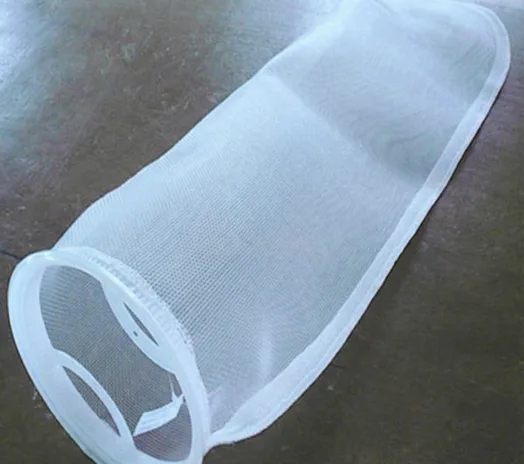

Mesh Filter Bags – Monofilament & Multifilament

Mesh Liquid Filter Bags (Monofilament & Multifilament)

Monofilament & Multifilament Mesh Liquid Filter Bags Oveview

Mesh Filter Bags are widely used in industrial liquid filtration where reliable surface retention and stable micron ratings are required. Constructed from woven monofilament or multifilament mesh fabrics, these filter bags provide consistent pore size, excellent chemical resistance, and high mechanical strength.

Based on the yarn structure, mesh filter bags are available in two variants:

  • Monofilament Mesh Filter Bags – smooth single-filament yarn, uniform openings, high precision, reusable
  • Multifilament Mesh Filter Bags – multiple fine filaments twisted into a yarn, softer structure, higher dirt-holding capacity, economical for coarse filtration

Both types deliver efficient surface filtration and are ideal for removing hard particles, gels, debris, or contaminants from low- to medium-viscosity liquids.

Material Options

  • Nylon (PA) Monofilament
  • Polyester (PET) Multifilament
  • Polypropylene (PP) Monofilament

Micron Rating & Mesh Opening

  • Available from 30 μm to 1500 μm
  • Mesh counts from 13 to 420 mesh/inch, depending on desired precision

Ring / Collar Options

  • Plastic flange (PP or PE)
  • Galvanized or Stainless-Steel Ring
  • Fully ultrasonic-welded or sewn construction available

Standard Bag Sizes

Size 1, Size 2, Size 3, Size 4
(Custom dimensions available upon request.)

Mesh Filter Bags – Monofilament & Multifilament
Mesh Filter Bags – Monofilament & Multifilament

Mesh Filter Bags Key Features & Benefits

01
Surface Filtration Efficiency

Mesh bags operate as true surface filters—particles are retained on the mesh surface rather than trapped inside the media.

02
Excellent Repeatability (Monofilament Type)

Uniform pore structure delivers accurate and consistent filtration performance in critical processes.

03
High Flow Rates & Low Differential Pressure

Woven mesh construction minimizes pressure drop and maintains stable flow.

04
Chemical & Abrasion Resistance

Nylon, polypropylene, and polyester materials provide strong resistance to solvents, water-based liquids, chemicals, and abrasion.

05
Washable & Reusable (Monofilament)

Smooth monofilament yarn allows easy cleaning, extending service life and reducing operating cost.

06
Cost-Efficient (Multifilament)

Multifilament mesh bags offer good dirt-holding capacity at a lower price, ideal for general-purpose applications.

Mesh Filter Bags Specifications

MATERIAL TEMPERATURE RANGE CHEMICAL RESISTANCE COMMON APPLICATIONS FEATURES
Nylon
(Polyamide) 		~120°C (248°F) Good resistance to water, oils, and some chemicals Food & beverage, pharmaceuticals, chemical industry High strength, abrasion resistant, flexible
Polyester (PET) ~150°C (302°F) Good resistance to acids and alkalis Chemical filtration, beverages, petrochemical, industrial use Strong, corrosion resistant, versatile
Polypropylene
(PP) 		~90°C (194°F) Excellent resistance to acids and bases Strong acid/base solutions, wastewater treatment Chemically resistant, cost-effective

Monofilament vs Multifilament Mesh Filter Bags

Feature Monofilament Mesh Filter Bags Multifilament Mesh Filter Bags
Yarn Structure Smooth, single-filament yarn Multi-strand twisted yarn
Filtration Type Precise surface filtration Semi-depth filtration
Micron Accuracy Very high, uniform openings Moderate precision
Reusability Reusable, washable Not suitable for repeated washing
Strength & Durability Excellent mechanical stability Soft, flexible structure
Typical Micron Range 25–1200 μm 100–1500 μm
Best For High-precision liquid filtration Cost-effective coarse filtration

Filter Bag Size (Support Customized)

FILTER BAG SIZE DIMENSIONS (DIAMETER × LENGTH)
Size 1 Φ180×430mm
Size 2 Φ180×820mm
Size 3 Φ106×230mm
Size 4 Φ106×380mm
Size 5 Φ152×510mm

INDUSTRIAL
APPLICATIONS

Made from precision-woven monofilament and multifilament mesh, these industrial liquid filter bags provide high flow rates, excellent mechanical strength, and reliable surface-filtration performance across a wide range of process fluids.

More Applications
Coatings, Paints, Inks & Industrial Fluids

Coatings, Paints, Inks & Industrial Fluids

Durable woven mesh efficiently removes pigments, gels, agglomerates, and suspended solids while maintaining smooth, uniform flow. Ideal for inks, paints, varnishes, resins, adhesives, and specialty industrial fluids where clean finishing, viscosity stability, and contaminant control are critical.

Water Treatment & Utility Liquids

Water Treatment & Utility Liquids

High-flow monofilament and multifilament mesh support effective filtration of particle-laden water streams, including utility water, cooling water, RO pre-filtration, wastewater, and general process liquids. Their dimensional stability and smooth mesh surface allow predictable performance, easy cleaning, and long service life.

Oils, Solvents & Chemical Processing

Oils, Solvents & Chemical Processing

Mesh filters offer strong resistance to oils, hydrocarbons, organic solvents, and a wide range of chemicals. Their uniform openings ensure reliable surface filtration for lubricants, process oils, solvent-based fluids, and corrosive chemical liquids

Engineering Support & Customization

Engineering card image

Pre-Project Technical Evaluation

  • Assessment of process-liquid characteristics: viscosity, density, temperature, particulate morphology
  • Evaluation of target particle size and required micron rating / mesh opening (25–1500 µm)
  • Chemical exposure analysis: oils, solvents, hydrocarbons, aqueous chemicals, wastewater
  • Determination of filtration mode: surface (monofilament) vs semi-depth (multifilament)
  • Compatibility review for housings, baskets & ring systems (plastic / stainless / carbon steel / galvanized rings)
  • Verification of flow-rate requirements, allowable differential pressure, and system operating conditions
  • Evaluation of extractables for coatings, inks, food-grade liquids, and industrial fluids
Engineering card image

Custom Engineering Solutions

  • Custom mesh configuration: opening size, yarn type, yarn count, open-area percentage
  • Material options: PA6 / PA66 monofilament, PET multifilament, or PP monofilament
  • Surface-finishing enhancements: heat-setting, calendaring, anti-static treatment, dimensional stabilization
  • Application-driven media selection for solvents, inks, paints, oils, chemicals, wastewater
  • Customizable ring types: molded PP flange, stainless-steel ring, carbon steel, galvanized steel
  • Seam construction options: stitched, welded, reinforced seam depending on pressure & chemical exposure
  • Engineering support for high-flow, high-viscosity, and large-batch process systems
  • Optional food-grade / FDA-compliant materials for sensitive applications
Engineering card image

Quality Assurance & Testing

  • Micron-accuracy validation using optical measurement systems
  • Flow-rate & pressure-drop performance testing for stable surface filtration
  • Tensile-strength, seam-strength & abrasion / fiber-shedding resistance testing
  • Chemical-compatibility testing for solvents, hydrocarbons, oils, acids, alkalis, and aqueous liquids
  • Dimensional-stability & thermal-shrinkage evaluation at operating temperatures
  • Cleanability testing for monofilament mesh: manual washing, spray-rinse, CIP cycles
  • Surface-finish inspection ensuring consistent mesh uniformity and predictable micron performance
LET’S WORK TOGETHER

Why Choose Omela Filtration?

Choosing the right filtration supplier affects everything from system stability to maintenance downtime. At Omela Filtration, we combine reliable materials, controlled production, and years of industry experience to support dust and liquid filtration needs across different plants and applications.

We use consistent-grade filter media, sewing thread and metals sourced from qualified suppliers. Each batch is checked for weight, thickness, air permeability and tensile strength to keep performance steady across shipments.

Our facility is equipped with modern sewing lines, hot-welding machines and automated inspection tools. This keeps production efficient and helps us meet tight delivery schedules, even on custom orders.

Our engineers and technicians have long experience with dust collectors, liquid systems and industry-specific conditions. They help you match materials to temperature, chemistry and air-to-cloth ratios to avoid unnecessary failures.

From sampling to documentation and shipping, our team responds quickly and keeps information clear. Customers in cement, asphalt, power and water-treatment plants rely on our service to resolve problems without delay.

From the first technical discussion to installation and long-term maintenance, our team stays involved at every stage. We analyze your operating conditions, adjust product designs when needed, and ensure the final filtration setup works reliably in real plant environments. After delivery, our service team continues to provide guidance and troubleshooting support, helping you keep your system stable and downtime low.

Donaldson
nederman
camfil-apc
cnbm
ACC
Metso

Frequest Asked Questions

1. What is the difference between monofilament and multifilament mesh filter bags?
2. How do I choose the correct micron rating for my application?
3. Do you offer custom mesh openings or bag designs?
4. Are mesh filter bags suitable for food-grade or sensitive applications?
5. Do mesh filter bags fit standard filter housings?
6. Can mesh filter bags handle high flow rates?
