Key Takeaways
- Laser cutting dust collector sizing should start from the active cutting zone, not only from the laser power or collector model.
- The main sizing factors are air volume, CFM or m³/h, cutting table design, material type, plate thickness, filter cartridge area, static pressure, pressure drop, spark risk, and working hours.
- A laser cutting dust collector should maintain stable source capture when filters are clean and also when cartridges are loaded with dust.
- Filter cartridges must provide enough filtration area so fine metal fume can be captured without causing rapid pressure-drop rise or short service life.
- Oversizing wastes energy and floor space, while undersizing causes smoke escape, weak suction, fast filter clogging, high maintenance cost, and unstable workshop air quality.
- Correct sizing should balance capture airflow, duct resistance, filter loading, pulse cleaning, fan static pressure, spark protection, and long-term maintenance cost.
Why Sizing Matters in Laser Cutting Dust Collection

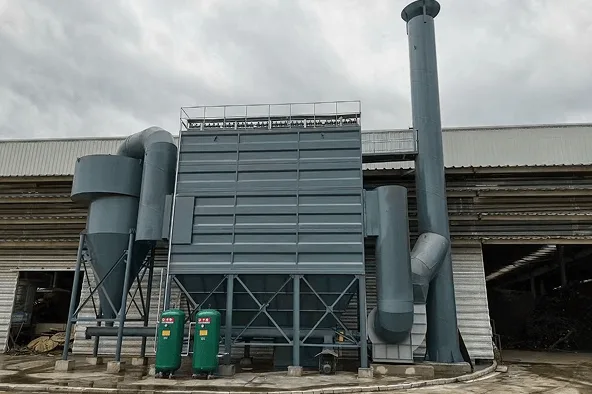

A laser cutting dust collector may look like a simple machine: dirty air enters, filters capture dust, and clean air leaves. In real production, sizing is much more complex.
Laser cutting generates smoke, fine metal fume, oxide particles, small slag fragments, and hot sparks. These contaminants must be captured at the cutting table before they spread into the workshop. If the collector is too small, smoke escapes, suction drops quickly, filter cartridges clog early, and operators may see workshop haze even when the collector is running.
The right dust collector size is not the biggest size; it is the size that can capture the fume source, move the required air volume, overcome system resistance, provide enough filter area, and keep pressure drop stable over time.
If the collector is oversized, the system may also create problems. Excessive airflow can waste energy, increase noise, pull unnecessary air through the table, load filter cartridges faster, and raise the total cost of operation.
Start with the Active Cutting Area
The first sizing question is not “How many cartridges do we need?” It is:
How much cutting area must be extracted at one time?
For flatbed laser cutting, the whole table is not always active. Many modern cutting tables use zones or sections. Instead of pulling air through the full table surface, the system opens extraction under the active cutting area. This improves smoke capture while reducing unnecessary airflow.
A well-zoned cutting table can often achieve better smoke capture with less total air volume than a poorly zoned table.
A large table without proper zoning may require much more air volume than a smaller or well-zoned table. A collector that works on one 3 m × 1.5 m table may not work the same way on a 6 m × 2 m table, especially if the active open area is larger.
The sizing logic should review table width, table length, open extraction area, table chamber depth, airflow path, damper control, duct location, and whether smoke escapes from edges or corners during cutting.
Air Volume: CFM and m³/h Are Only the Starting Point
Air volume is usually expressed in CFM or m³/h. It tells how much air the collector can move. For laser cutting, airflow should be high enough to capture smoke before it rises or spreads, but not so high that it wastes power or overloads the filters.
A simplified airflow idea is:
Required air volume ≈ active extraction area × target capture velocity
This is only a starting point. Real sizing must also consider duct resistance, filter resistance, spark-control resistance, dirty-filter pressure drop, table leakage, and future production changes.
Air volume is only useful when it can still be delivered under real operating resistance, not just under clean-filter or free-air conditions.
Key Sizing Inputs
| Sizing Input | Why It Matters | What to Confirm |
|---|---|---|
| Active cutting area | Determines how much table area needs extraction at one time | Table size, zone size, open area |
| Material type | Different metals create different fume, dust, and spark behavior | Carbon steel, stainless steel, aluminum, galvanized sheet |
| Plate thickness | Thicker material often creates more smoke and hot particles | Normal and maximum thickness |
| Cutting speed and duty cycle | Long cutting time increases dust loading | Daily working hours and continuous operation |
| Filter cartridge area | Too little area causes high loading and fast pressure rise | Total media area and airflow per cartridge |
| Static pressure | Fan must overcome ducts, filters, spark devices, and table resistance | Duct layout, bends, filter condition |
| Spark risk | Hot particles can damage cartridges and create safety concerns | Material, table design, pre-separation |
| Maintenance target | Sizing affects filter life and changeout cost | Expected cartridge life and DP limit |
Cutting Material Changes the Dust Collector Size
Material type is a major sizing factor. Different metals produce different dust behavior.
Carbon steel cutting often produces visible oxide dust and smoke. Stainless steel may generate finer metal fume. Aluminum may create fine particles and hot sparks that require more safety review. Galvanized sheet or coated metal may produce more complex fumes and sticky deposits. Oily or filmed plates can introduce oil mist that makes filter cleaning harder.
The same cutting table may need different filtration and maintenance planning depending on the material mix.
A shop cutting mostly thin carbon steel may not load filters the same way as a shop cutting aluminum, stainless steel, or coated sheet for long hours. Sizing should therefore consider the most demanding regular production condition, not only the easiest material.
Filter Cartridge Area and Filtration Velocity
Filter cartridge area is one of the most important parts of dust collector sizing. A collector with enough airflow but too little filter area may capture smoke at first, but the cartridges will load too quickly. Pressure drop rises, suction weakens, and the system becomes unstable.
Filtration velocity describes how much air is passing through each unit of filter media. If filtration velocity is too high, fine laser fume can penetrate deeper into the cartridge media and become difficult to remove during pulse cleaning. If filtration velocity is controlled, dust can stay more on the surface and release more easily.
The goal is not simply more cartridges; the goal is enough effective media area for the actual dust load, airflow, particle size, pulse-cleaning method, and maintenance interval.
For laser cutting, cartridge media should support fine particle capture, dust release, proper sealing, mechanical strength, and spark-risk review. A cartridge with high initial efficiency may still perform poorly if it is overloaded or cleaned with weak compressed air.
Static Pressure: The Fan Must Work Against the Whole System
A dust collector fan does not move air in an empty room. It must pull air through the cutting table, ducts, elbows, dampers, spark-control devices, filter cartridges, dust cake, and outlet path. Every part adds resistance.
This resistance is called static pressure. If static pressure is underestimated, the fan may not deliver the required airflow during real operation. This is especially common when airflow is measured with clean filters, short ducts, or ideal conditions, but the actual workshop has longer duct runs, more bends, dirty filters, and additional spark-control devices.
A reliable sizing approach should check airflow at the expected dirty-filter condition, not only at clean-filter startup.
Air Volume, Filter Area, and Pressure Drop Relationship
| Design Factor | If Too Low | If Too High | Better Direction |
|---|---|---|---|
| Air volume | Smoke escapes from the table | Energy waste and faster filter loading | Match active cutting area |
| Filter area | High filtration velocity and fast clogging | Higher cost and larger footprint | Match dust load and service life |
| Fan static pressure | Weak suction under real resistance | Higher energy use if oversized | Size for duct + dirty-filter resistance |
| Pulse cleaning | Dust cake cannot release | Media stress and compressed air waste | Use controlled DP-based cleaning |
| Duct velocity | Dust may settle in ducts | Excess resistance and noise | Match duct size and transport need |
| Spark control | Hot particles reach filters | Excess pressure loss if overbuilt | Match material and cutting risk |
This table shows why sizing cannot be solved by one number. Airflow, filter area, fan pressure, duct design, and spark control must work together.
Why Pressure Drop Should Be Built into the Sizing Plan
Pressure drop is the collector’s health signal. When filter cartridges are clean, pressure drop is low. As fine dust builds on the cartridge media, pressure drop rises. Pulse cleaning should remove part of the dust cake and keep the system within a stable operating range.
If the collector is undersized, pressure drop rises quickly. If the media is unsuitable, fine fume may blind the cartridge. If pulse cleaning is weak, dust cake stays on the media. If moisture or oil mist is present, dust may become sticky and hard to release.
A sizing plan should define the expected pressure-drop range, the cleaning trigger, and the replacement limit.
Without these values, maintenance becomes guesswork. The practical target is not zero pressure drop. A stable dust cake is normal. The problem is uncontrolled pressure drop that causes airflow loss and smoke escape.
Cutting Table Design Affects Air Volume
A good dust collector cannot fix poor table capture. The cutting table must guide smoke toward the extraction path before it escapes upward or sideways.
Important table design factors include zone size, slat design, chamber depth, open area, side leakage, damper movement, duct connection point, and whether the table can concentrate suction near the active cutting zone.
Poor table zoning is one of the most common reasons a laser cutting dust collector needs more air than expected but still fails to capture smoke effectively.
For large tables, poor zoning is a common cause of oversized airflow demand. If the system tries to pull air through the entire table, the collector may need much more airflow than necessary. If zones are controlled properly, the same workshop may achieve better smoke capture with less total air volume.
This is why laser cutting dust collector sizing should always review the cutting table, not only the collector.
Spark Control and Hot Particle Protection
Laser cutting can produce sparks, hot particles, and small molten fragments. These particles should be reduced before they reach the filter cartridges.
A filter cartridge should not be the first defense against sparks.
Spark control may include drop-out space under the table, inlet baffles, spark traps, pre-separation, suitable duct layout, temperature monitoring, and safe dust discharge. The exact method depends on cutting material, cutting power, dust load, and safety requirements.
Spark protection also affects sizing because every baffle, separator, or protective device may add resistance. The fan must be sized to maintain airflow after this resistance is included.
Omela Filtration Application Lessons
Case 1: Large Cutting Table with Smoke Escaping from One Side
A metal fabrication workshop had a large flatbed fiber laser table. The collector airflow looked sufficient on paper, but smoke escaped from one side of the table.
The review showed that the issue was not only total airflow. The active extraction area and table zoning were not balanced. Some zones received strong suction, while others had weak capture. After the airflow path and zone control were reviewed, smoke capture became more stable.
Lesson: Dust collector sizing should start with the active cutting area and table design, not only total CFM.
Case 2: Filter Cartridges Loading Too Fast
A workshop cutting carbon steel and coated sheet had frequent cartridge replacement. Differential pressure increased quickly after each new cartridge set.
The review focused on filtration velocity, fine fume loading, oil residue, pulse-cleaning strength, compressed air quality, and available filter area. The collector was not only a filtration device; it was operating as a high-load fume system.
Lesson: Filter area must match fine fume loading and production duty.
A collector that is too small may appear normal at startup but fail after several days of loading.
Case 3: Burn Marks During Aluminum Cutting
A laser cutting line processing aluminum and mixed metals showed localized burn marks on cartridge media. Replacing cartridges alone did not solve the root cause.
The review pointed to hot particles entering the filtration stage too directly. The solution direction focused on spark-control path, inlet protection, and safer dust discharge practices.
Lesson: Spark control is part of sizing.
Protective devices add resistance, and that resistance must be included in fan and airflow selection.
Case 4: Multi-Machine Central Dust Collection
A workshop connected multiple cutting machines to one collector. Total air volume seemed enough, but airflow distribution was unstable. One branch had weak suction while another branch pulled more air than needed.
The review focused on duct balance, damper logic, simultaneous machine operation, and fan pressure. The system needed airflow management, not just more collector capacity.
Lesson: For central dust collection, the sizing question is not only total airflow. Branch balance and simultaneous operation must be reviewed.
Common Sizing Problems and Corrections
| Field Problem | Likely Cause | Practical Correction |
|---|---|---|
| Smoke escapes from table | Active extraction area is too large or airflow is weak | Review table zoning, fan duty, and duct leakage |
| Suction drops after days of cutting | Filter cartridges are loading too fast | Increase filter area or reduce filtration velocity |
| Pressure drop rises quickly | Fine fume blinding, weak pulse cleaning, or sticky dust | Check media, pulse system, air quality, and dust type |
| Burn marks on cartridges | Sparks or hot particles reach the filter stage | Improve spark control before filtration |
| Dust settles in ductwork | Duct velocity is too low or duct layout is poor | Review duct diameter, routing, and airflow balance |
| Fan cannot maintain airflow | Static pressure was underestimated | Recalculate duct, filter, table, and spark-device resistance |
| Maintenance cost is too high | Collector is undersized or filter replacement is too frequent | Match filter area, airflow, and pressure-drop strategy |
The correction is not always a larger collector. Sometimes the better solution is better zoning, more effective duct balance, lower filtration velocity, improved pulse cleaning, or upstream spark control.
A Practical Sizing Workflow
A practical sizing process should move from the cutting source to the collector outlet.
First, define the cutting process: material type, plate thickness, laser power, cutting speed, table size, working hours, and expected future expansion.
Second, calculate the active extraction area and estimate required air volume. For zoned tables, size the active zone rather than the entire table when appropriate.
Third, check duct layout and static pressure. Long ducts, elbows, dampers, spark devices, dirty filters, and outlet restrictions all affect real airflow.
Fourth, match filter cartridge area to airflow and dust load. The system should not rely on high airflow through too little media.
Fifth, include spark control and maintenance access. A system that is difficult to clean or inspect may become unstable even if the original sizing is correct.
Good sizing is a step-by-step process from source capture to final discharge, not a quick model selection from a catalog.
Information Needed Before Quotation
Before choosing a laser cutting dust collector, prepare:
- Laser power, cutting table size, active extraction zone, and number of cutting heads
- Material type, plate thickness, cutting speed, and daily working hours
- Current smoke condition, such as visible escape, workshop haze, or weak suction
- Dust type, including carbon steel, stainless steel, aluminum, galvanized sheet, coated metal, or mixed metal
- Existing duct size, duct length, fan power, filter cartridge size, cartridge quantity, pressure-drop trend, spark history, and photos or videos of the cutting process
The more accurately the real cutting condition is described, the more reliable the dust collector sizing will be.
This information helps determine air volume, fan static pressure, filter area, cartridge media, spark-control design, and maintenance strategy.
Final Engineering View
Laser cutting dust collector sizing should not start with a catalog model. It should start with the cutting table and the smoke source.
A stable system must answer five questions:
Can the table capture smoke before it spreads?
Can the fan deliver the required air volume under real static pressure?
Is there enough filter cartridge area for the dust load?
Can pulse cleaning keep pressure drop stable?
Are sparks and hot particles controlled before the filters?
The right size is not the largest collector; it is the collector that matches the active cutting area, material type, filter area, pressure drop, spark risk, and real production schedule.
When these questions are answered together, the dust collector can maintain cleaner workshop air, more stable suction, longer filter life, lower maintenance cost, and safer operation.
FAQ
How do you size a laser cutting dust collector?
A laser cutting dust collector is sized by reviewing the active cutting area, required air volume, cutting table design, material type, plate thickness, dust load, filter cartridge area, static pressure, pressure drop, spark risk, and working hours.
Is laser power enough to size a dust collector?
No. Laser power is useful information, but it is not enough. Table size, active extraction zone, material type, cutting speed, duty cycle, duct layout, and filter area also affect sizing.
How does cutting table design affect air volume?
A well-zoned cutting table can concentrate suction near the active cutting area. Poor zoning may require much more air volume and still allow smoke to escape.
Why do filter cartridges clog quickly in laser cutting?
Filter cartridges may clog quickly when fine metal fume penetrates the media, filtration velocity is too high, pulse cleaning is weak, filter area is too small, or oil mist and moisture make dust sticky.
Why is static pressure important in dust collector sizing?
Static pressure is the resistance the fan must overcome from the cutting table, ductwork, bends, spark-control devices, filters, dust cake, and outlet path. If it is underestimated, the collector may not maintain airflow in real operation.
Should spark control be included in sizing?
Yes. Spark-control devices and inlet protection add resistance, and this resistance must be included in fan and airflow selection. Sparks should be controlled before they reach the filter cartridges.
What information is needed to quote a laser cutting dust collector?
Provide laser power, table size, active extraction area, material type, thickness, cutting speed, working hours, duct layout, airflow requirement, filter details, pressure-drop trend, spark history, and photos or videos.
