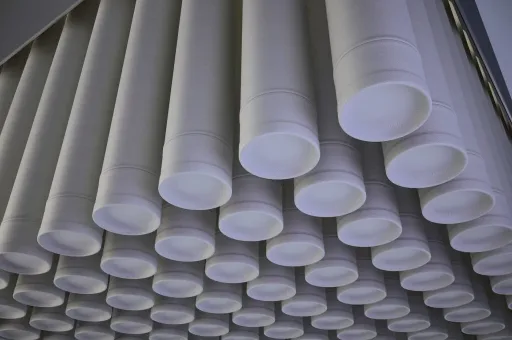

Understanding Dust Properties for Baghouse and Filter Bag Selection

Dust properties directly determine baghouse performance and filter bag material selection.
Key Specs Engineers Must Verify:

• Particle Size Range: 0.5–50 μm (defines penetration risk and cake stability)
• Dust Abrasion Index: Medium to Severe (drives wear rate and fiber choice)
• Moisture & Stickiness Threshold: >8–10% (controls blinding and cleaning efficiency)
  Omela Filtrations Value: Omela Filtrations engineers match dust behavior with proven media structures to ensure stable emissions compliance and extended service life.

Dust Characteristics That Define Baghouse Filter Bag Material Selection (Engineer’s Guide)

Baghouse filtration is not only about choosing a “high-temperature filter bag.”
It is about understanding the dust itself.

In cement kilns, steel furnaces, asphalt plants, and chemical reactors, the dust load is rarely uniform. Dust can be:

• Ultra-fine and airborne
• Sticky from hydrocarbons
• Highly abrasive from silica
• Chemically aggressive from acids or alkalis

These dust characteristics directly affect:

• Pressure drop (ΔP)
• Cleaning stability
• Filter bag abrasion rate
• Emission performance (mg/Nm³ compliance)

Omela Filtrations designs filter bag solutions based on dust property engineering, not generic catalog selection. That is how industrial plants maintain long-term, predictable baghouse operation.

Technical Core & Omela Insights

Challenges & Macro Trends

Modern baghouses face harsher operating conditions due to tighter regulations and higher production loads. The most critical dust-driven variables include:

• Temperature stress
  High stack temperatures accelerate fiber aging and shrinkage.
• Chemical attack
  Acid dew point corrosion requires PPS or PTFE instead of Polyester.
• Abrasion & particle hardness
  Sharp silica dust rapidly wears standard needle felts.
• Dust loading & Air-to-Cloth ratio (A/C)
  High A/C ratios (>1.2–1.5 m/min) demand stronger surface filtration media.
• Moisture and condensation risk
  Sticky dust causes blinding and unstable cleaning cycles.

Omela Filtrations always begins bag selection by answering one question:

What does the dust do inside the collector over 10,000+ operating hours?

Material Selection / Product Deep Dive

Different dust properties require different filter bag media. Below is a practical engineering comparison:

Engineering rule:

• Fine, sticky dust → PTFE membrane surface filtration
• Abrasive mineral dust → Fiberglass or reinforced felt
• Acidic flue gas → PPS or PTFE
• Budget low-temp applications → Polyester only if dew point is controlled

Omela Filtrations provides dust testing support to avoid premature bag failures caused by incorrect assumptions.

People Also Ask (Engineering Q&A)

How does particle size affect filter bag performance?

Particle size controls whether dust forms a stable cake or penetrates the media.

• >10 μm particles: build cake quickly, easy filtration
• 1–5 μm particles: highest penetration risk, require membrane media
• Submicron dust (<1 μm): difficult capture without PTFE surface layer

Omela Filtrations typically recommends PTFE-laminated felts when dust contains a high fraction of PM2.5.

When should I replace filter bags based on dust behavior?

Replacement is not only based on time. Dust properties drive failure modes:

• Abrasive dust → fiber wear and holes
• Sticky dust → irreversible blinding
• Chemical dust → loss of tensile strength
• Fine dust → rising ΔP and cleaning instability

Typical replacement indicators:

• ΔP remains >1500–1800 Pa even after cleaning
• Visible emissions spikes
• Bag elongation or seam damage

Omela Filtrations designs bags with reinforced cages and seam structures for high-load dust environments.

What dust conditions cause baghouse blinding?

Blinding occurs when dust blocks pores permanently. Common causes:

• Moisture >8–10%
• Condensation below acid dew point
• Resinous or oily dust (asphalt, chemical plants)
• Over-cleaning that drives fines deep into media

Solution strategies include:

• PTFE membrane surface filtration
• Proper hopper insulation
• Optimized pulse-jet timing

Omela Filtrations supports cleaning parameter optimization as part of project delivery.

Expert Quote
“Dust is not a passive byproduct — it is an active mechanical and chemical load on the filter media. At Omela Filtrations, we qualify every bag design by dust abrasion index, dew point margin, and long-cycle tensile retention.”
— Dr. Li, Chief Material Engineer at Omela Filtrations

Performance Data (Field Reference)

In a recent 5000 t/d cement kiln baghouse retrofit, Omela Filtrations supplied PPS + PTFE membrane filter bags. Results:

• Stable emissions: <5 mg/Nm³
• Continuous operation: 24 months without unplanned bag failures
• Pressure drop reduction: ~18% vs. previous standard PPS felt

This is the measurable impact of dust-driven engineering selection.

Conclusion & CTA

Understanding dust properties is the foundation of correct baghouse and filter bag selection.

Correct dust-material matching delivers:

• Longer filter bag service life
• Lower compressed air consumption
• Stable emissions compliance
• Reduced shutdown and maintenance cost
• Strong Total Cost of Ownership ROI

Contact Omela Filtrations technical team today for a customized filtration audit and quote.

Author

Jessica Ma – Senior Filtration Engineer, Omela Filtration

Jessica Ma is a senior filtration engineer at Omela Filtration, specializing in dust and liquid filtration. With over 15 years of experience, she focuses on optimizing baghouse performance, enhancing filtration efficiency, and developing high-performance solutions for industrial dust collectors and precision liquid filtration applications.
