How to Choose a Filter Bag for Effective Industrial Filtration Systems

How to Choose a Filter Bag for Effective Industrial Filtration Systems

An engineering-first guide to making decisions that hold up in real operation

Choosing a filter bag is often treated as a procurement step at the end of system design. In effective industrial filtration systems, it should be one of the earliest engineering decisions. The filter bag defines how dust or liquid is captured, how pressure drop evolves, how cleaning behaves, and ultimately how stable the system remains over time.

There is no universally “best” filter bag. There is only a correct match between process conditions and filtration behavior.

Start with the Process, Not the Product

Before looking at materials or micron ratings, engineers should answer a simpler question:

What is the dominant stress acting on the filter bag in this system?

In practice, most industrial filtration problems are driven by one (or two) of the following:

• Fine particle penetration
• Abrasion from hard or angular solids
• Chemical interaction with gas or liquid
• Moisture, condensation, or oil mist
• Thermal cycling rather than steady heat
• Aggressive or poorly controlled cleaning

Filter bags fail according to the dominant stress, not according to their datasheet headline.

Dust and Particle Behavior Comes First

Particle size alone is not enough. Two dusts with the same median size can behave completely differently.

Key questions that matter in the field:

• Is the dust fine and mobile, or coarse and heavy?
• Does it form a stable cake, or does it rebound and re-entrain?
• Is it abrasive, cutting fibers mechanically?
• Does it contain binders, oils, or moisture that change surface behavior?

Fine, low-cohesion dust typically pushes systems toward surface-controlled filtration. Coarser or more forgiving dust often works well with depth filtration, which tolerates variability better.

Temperature: Continuous, Peak, and Cycling Are Not the Same

Many filter bags fail below their published temperature rating.

Why?

Because temperature stress in real systems comes from:

• Short, repeated spikes
• Uneven distribution across compartments
• Start-up and shutdown cycles
• Interaction with moisture or chemistry

A bag rated for 200 °C continuous may fail faster than a lower-rated bag if it experiences sharp cycling or chemical attack. Temperature must be evaluated together with chemistry and operating rhythm, not in isolation.

Chemistry Often Decides Bag Life Quietly

Chemical compatibility is one of the most underestimated selection factors.

Problems rarely appear as immediate damage. Instead, they show up as:

• Gradual loss of permeability
• Increased dust adhesion
• Reduced response to cleaning
• Brittle or softened fibers during inspection

Acidic gases, oxidizing environments, hydrocarbons, and alkaline dusts all interact differently with common filter materials. Selecting a bag for “heat resistance” without confirming chemical stability is a common and costly mistake.

Depth Filtration vs. Surface Filtration Is a Strategic Choice

Choosing between depth and surface filtration defines how the system will age.

• Depth filtration
  • More tolerant of uneven flow and cleaning
  • Fails slowly through internal loading
  • Suitable where emission limits allow some variability
• Surface filtration
  • Controls fine particles from day one
  • Keeps pressure drop more stable
  • Requires disciplined cleaning and airflow control

The correct choice depends on how much performance drift the system can tolerate over time.

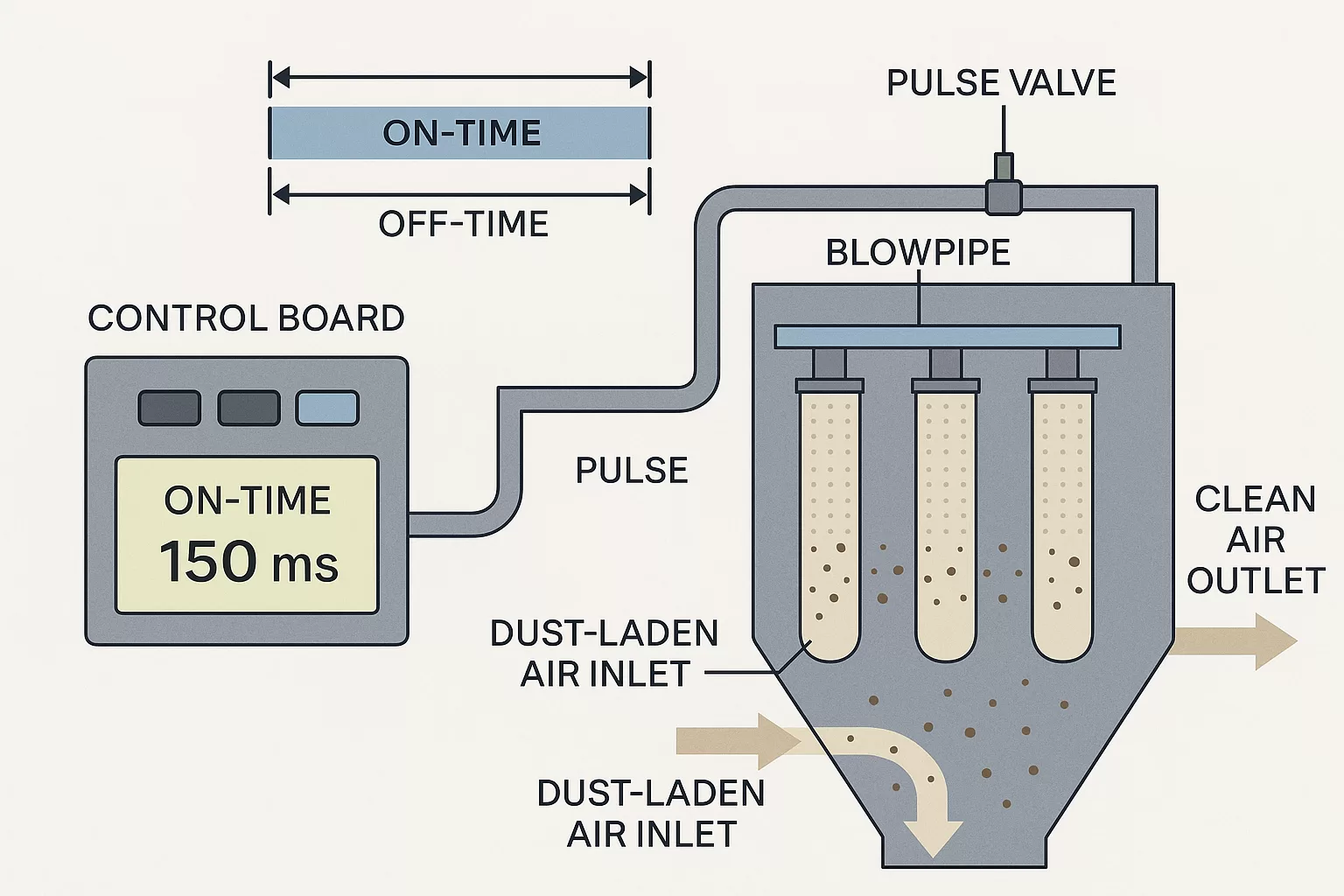

Cleaning Method Must Match the Filter Bag

Filter bags do not operate independently of cleaning.

Common mismatches include:

• Membrane bags paired with aggressive pulse settings
• Rigid media used in highly dynamic pulse-jet systems
• Depth filters cleaned so aggressively that internal loading accelerates

Cleaning energy, frequency, and distribution determine whether a bag performs for years or fails early. Selecting a high-performance bag without adjusting cleaning philosophy often makes performance worse, not better.

Material Names Are Shortcuts, Not Answers

“Polyester,” “PPS,” “Nomex,” “PTFE,” and “fiberglass” are categories, not guarantees.

Within each category, performance varies based on:

• Fiber structure and denier
• Felt density and permeability
• Surface treatments or membranes
• Seams, finishes, and cage compatibility

Two bags with the same material name can behave very differently in the same system.

A Practical Selection Framework

In effective industrial filtration systems, filter bag selection usually follows this order:

1. Identify the dominant failure mechanism
2. Decide whether depth or surface filtration is appropriate
3. Confirm temperature and chemistry compatibility
4. Match abrasion and moisture tolerance to dust behavior
5. Align the bag choice with the cleaning strategy

Skipping steps or reversing the order often leads to unstable operation.

What to Monitor After Installation

Correct selection does not end at commissioning.

Early indicators of mismatch include:

• Baseline pressure drifting upward
• Increased pulse frequency without recovery
• Uneven wear patterns between compartments
• Emissions changing during load fluctuations

These signals usually appear long before visible bag damage and provide an opportunity to correct course.

An Engineering Takeaway

Effective industrial filtration is not achieved by choosing the most expensive or most “advanced” filter bag. It is achieved by choosing the most appropriate filtration behavior for the process.

When filter bags are selected based on dust behavior, chemistry, temperature profile, and cleaning discipline, systems stabilize naturally. When they are chosen by habit or headline ratings, problems repeat with different materials.

Omela Filtrations supports filter bag selection by focusing on how filtration systems behave over time, helping engineers align media choice with real operating conditions—so performance is not just achieved, but sustained.

---
