Using differential pressure to understand what filters are really experiencing

In many baghouse installations, the most important instrument is also the simplest one: the Magnehelic gauge. It has no software, no data logging, and no alarms by default—yet it often provides the clearest picture of how a dust collection system is actually performing.

When read correctly, a Magnehelic gauge does not just show pressure. It tells a story about dust loading, filter condition, cleaning effectiveness, and system stability.

What a Magnahelic Gauge Measures

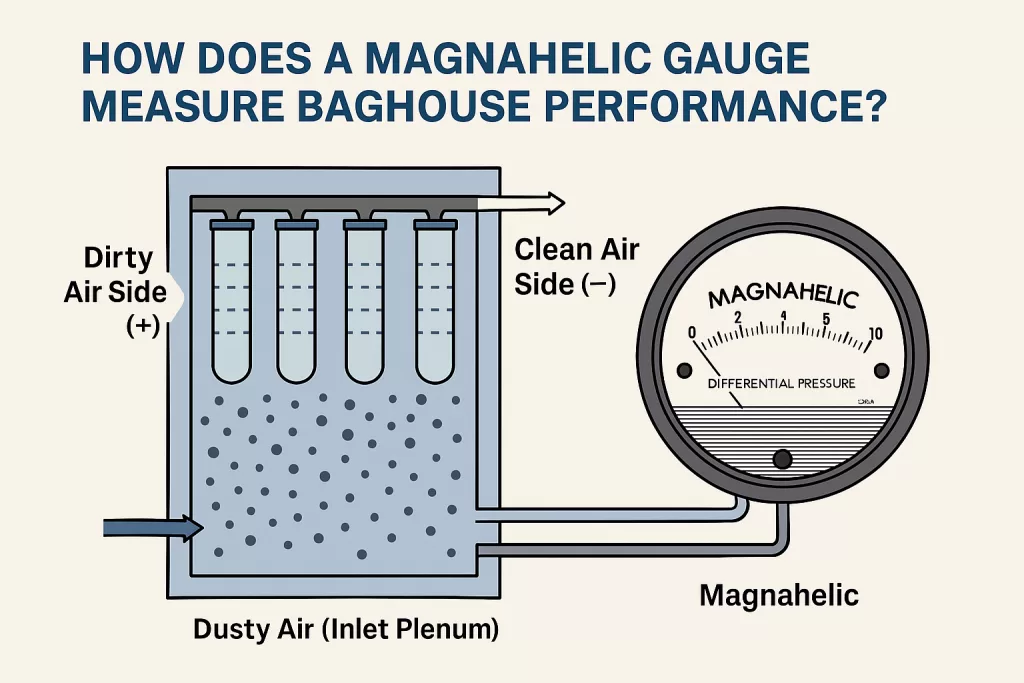

A Magnehelic gauge measures differential pressure (DP)—the pressure difference between two points in the system.

In a baghouse, those two points are typically:

• Dirty-air side (upstream of the filters)
• Clean-air side (downstream of the filters)

The reading represents the resistance to airflow caused primarily by the filter bags and their dust cake.

It does not measure airflow directly.
It measures how hard the fan must work to push air through the filters.

Why Differential Pressure Reflects Baghouse Health

As dust accumulates on filter bags:

• Air passages become more restricted
• Resistance increases
• Differential pressure rises

When filters are cleaned effectively:

• Dust cake releases
• Resistance decreases
• Differential pressure falls

This makes DP a real-time indicator of filtration behavior, not just a static number.

Interpreting a “Normal” DP Reading

There is no universal “correct” DP value.

A normal operating range depends on:

• Filter media type
• Air-to-cloth ratio
• Dust characteristics
• Bag length and diameter
• Cleaning method

What matters most is stability, not the absolute number.

A healthy baghouse typically shows:

• Gradual DP rise during filtration
• Predictable DP drop during cleaning
• A stable average over time

What Rising DP Is Really Telling You

A steadily increasing DP can mean several things, not all of them bad.

Common interpretations include:

• Normal dust loading between cleaning cycles
• Inadequate cleaning energy
• Dust penetrating into the felt
• Sticky or moisture-affected dust

The rate of increase matters more than the value itself. Rapid DP rise after cleaning usually signals a mismatch between dust behavior and filter media or operating conditions.

What Falling DP Can Indicate

Low DP is often misinterpreted as good performance.

In reality, unusually low DP may indicate:

• Over-cleaning
• Bare fabric exposure
• Reduced dust cake protection
• Increased dust penetration risk

A baghouse running at very low DP may look efficient while quietly shortening filter life.

Using DP Trends Instead of Snapshots

A single Magnehelic reading is a snapshot. Performance assessment requires trends.

Useful trend observations include:

• DP baseline after new bag installation
• Average DP during stable production
• Cleaning-trigger points and recovery levels
• Long-term drift over weeks or months

Sudden changes usually indicate:

• Bag failure
• Air leakage
• Process upset

Gradual drift often reflects aging filters or changing dust conditions.

How the Magnahelic Helps Evaluate Cleaning Performance

Cleaning effectiveness is not judged by how loud or forceful pulsing looks—it is judged by DP recovery.

After a cleaning cycle:

• DP should drop consistently
• Recovery should reach a repeatable lower level

If DP:

• Drops less with each cycle → cake is not releasing
• Drops too far → over-cleaning may be occurring

The Magnehelic reveals whether cleaning is restoring permeability or just consuming compressed air.

What the Gauge Does Not Tell You

Despite its value, the Magnehelic has limits.

It does not directly show:

• Emissions or dust leakage
• Which bag is damaged
• Airflow rate
• Dust concentration

A system can have stable DP and still leak dust through a torn bag. That is why DP monitoring is often paired with leak detection or visual inspection.

Common Misreadings and Misuses

• Chasing the lowest DP possible
  Leads to over-cleaning and bag wear.
• Ignoring slow DP drift
  Misses early warning signs of long-term problems.
• Comparing DP between different baghouses
  Without accounting for design differences.
• Adjusting controls based on a single reading
  Instead of observed trends.

The gauge is a diagnostic tool, not a trigger for constant adjustment.

Why Simple Gauges Still Matter in Modern Systems

Even in systems with digital sensors and PLCs, the Magnehelic remains valuable because it:

• Provides immediate visual feedback
• Encourages operator awareness
• Serves as a cross-check against electronic signals

It often becomes the first indicator that something has changed—before alarms are set or thresholds are crossed.

A Magnehelic gauge measures baghouse performance by showing how filtration resistance evolves over time.

It is most useful when:

• Read consistently, not occasionally
• Interpreted as a trend, not a target
• Used to understand cleaning effectiveness
• Viewed as a system indicator, not a fault alarm

Stable differential pressure means the baghouse is operating within its design window. Unstable DP means something—dust behavior, cleaning, airflow, or filter condition—is out of balance.

When operators learn to read what the Magnehelic is actually saying, baghouse performance becomes predictable rather than reactive—and filtration problems are addressed early, while they are still manageable.
