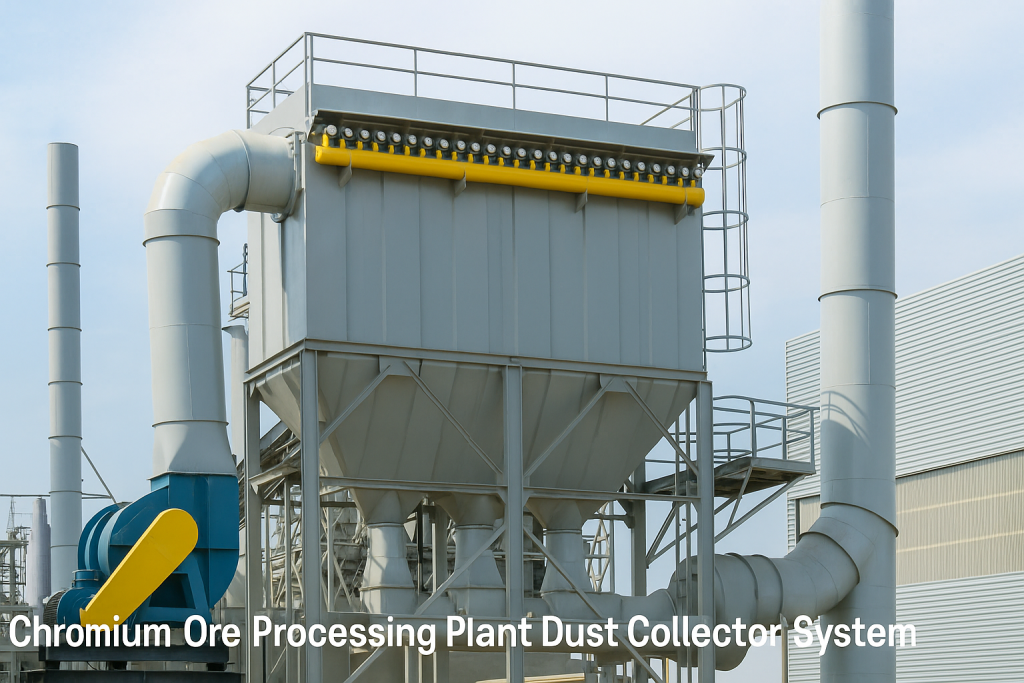

Chromium Ore Processing Plant Dust Collector System

Chromium Ore Processing Plant Dust Collector System

Controlling abrasive, metal-rich dust while maintaining airflow stability and occupational safety

Dust collection in chromium ore processing plants sits at the intersection of abrasive mineral handling and heavy-metal exposure control. Chromium-bearing dust is not only mechanically aggressive, but can also pose environmental and occupational risks, especially when fine fractions accumulate or escape containment. A dust collector system in this context must therefore balance mechanical durability, filtration stability, and strict containment discipline.

This article explains how dust collector systems are engineered for chromium ore processing, where failures typically originate, and which design priorities determine long-term reliability.

Why Chromium Ore Dust Requires a Dedicated Filtration Approach

Chromium ore (commonly chromite-based) generates dust with several challenging characteristics:

• High hardness and angular particle shape, leading to abrasion
• Wide particle size distribution, from coarse fragments to fine metal-rich dust
• Elevated density, increasing impact energy at inlets
• Potential health concerns associated with chromium-bearing particulates

Unlike purely inert mineral dust, chromium dust demands a system that performs reliably under continuous wear and containment-sensitive conditions.

Key Dust Generation Points in Chromium Ore Processing

A chromium ore processing plant typically includes multiple dust-emitting stages:

• Primary and secondary crushing
  Coarse, high-impact dust with severe abrasive potential
• Dry grinding and milling
  Fine particulate with penetration tendency and airflow sensitivity
• Screening and classification
  Turbulent airflow, re-entrainment, and mixed particle sizes
• Material conveying and storage
  Intermittent dust release and variable loading

Each zone stresses the dust collector differently, making zoned system design preferable to a single uniform solution.

Abrasion as the Dominant Failure Mechanism

In chromium ore dust collectors, abrasion remains the leading cause of bag damage.

Common failure patterns include:

• Rapid thinning of inlet-row filter bags
• Localized wear near the bottom of bags
• Pinholes forming before pressure drop stabilizes
• Uneven bag life across compartments

Temperature and chemistry are rarely the limiting factors. Mechanical wear and airflow impact dominate system performance.

Selecting the Right Dust Collector Configuration

Pulse Jet Baghouse for Continuous Chromium Processing

Pulse jet baghouses are widely adopted in chromium plants due to:

• Continuous filtration without shutdown
• Compact footprint suitable for crushing and grinding lines
• Compatibility with high dust loading

However, these systems must be engineered conservatively. Excessive pulsing or poor gas distribution accelerates fabric fatigue and wear.

Pre-Separation to Reduce Mechanical Stress

Where coarse dust loading is high, upstream protection significantly improves system life:

• Drop-out boxes or gravity chambers
• Cyclones ahead of the baghouse
• Controlled transfer-point enclosures

Reducing the kinetic energy of incoming dust protects both filter bags and internal components.

Filter Bag Selection for Chromium Ore Applications

High-Denier Polyester for Abrasive Mineral Zones

For most low-to-moderate temperature chromium processes:

• High-denier polyester needle felt offers strong abrasion resistance
• Good flexibility under pulse cleaning
• Cost-effective for large-scale installations

Polyester often outperforms higher-temperature fibers in pure abrasion-dominated environments.

Blended or Reinforced Media Where Conditions Vary

In zones with combined abrasion and thermal fluctuation:

• Polyester–aramid blends may improve dimensional stability
• Reinforced scrims or outer layers protect against impact

Membrane structures are applied selectively and only with adequate inlet protection, as membranes alone do not resist abrasion.

Inlet Design: Protecting Bags Before Filtration Begins

Many chromium dust collection failures originate at the inlet.

Effective inlet protection includes:

• Expanded inlet plenums to reduce velocity
• Baffles and deflectors to redirect dust flow
• Wear sleeves on first-row filter bags

Correct inlet engineering often doubles bag life without changing filter media.

Cleaning Strategy: Preserve the Protective Dust Layer

Chromium dust collectors perform best when cleaning is controlled, not aggressive.

Best practices include:

• Differential-pressure-based cleaning
• Moderate pulse pressure and duration
• Avoiding complete stripping of the dust cake

A thin dust cake cushions the fabric surface and reduces direct abrasion. Over-cleaning exposes bare media to high-impact particles and accelerates wear.

Managing Fine Dust and Exposure Control

Fine chromium-bearing dust requires careful containment.

System design should ensure:

• Stable surface filtration to limit penetration
• Uniform bag integrity across compartments
• Sealed housings and controlled discharge systems

Emission stability and worker protection depend on consistent filtration behavior, not just nominal efficiency ratings.

What Stable Chromium Dust Collection Looks Like in Operation

In a well-designed chromium ore dust collector system:

• Pressure drop rises gradually and stabilizes
• Cleaning frequency remains predictable
• Bag wear is evenly distributed
• Maintenance intervals are planned, not reactive
• Dust emissions remain consistently controlled

Sudden pressure spikes or localized bag failures usually indicate airflow imbalance or inlet-related stress.

Common Design Errors in Chromium Dust Collection

• Over-sizing air-to-cloth ratio to increase capacity
• Ignoring inlet protection in abrasive zones
• Selecting high-temperature media unnecessarily
• Over-pulsing to compensate for rising pressure drop
• Treating all dust sources as identical

These choices increase operating cost without improving reliability.

---
